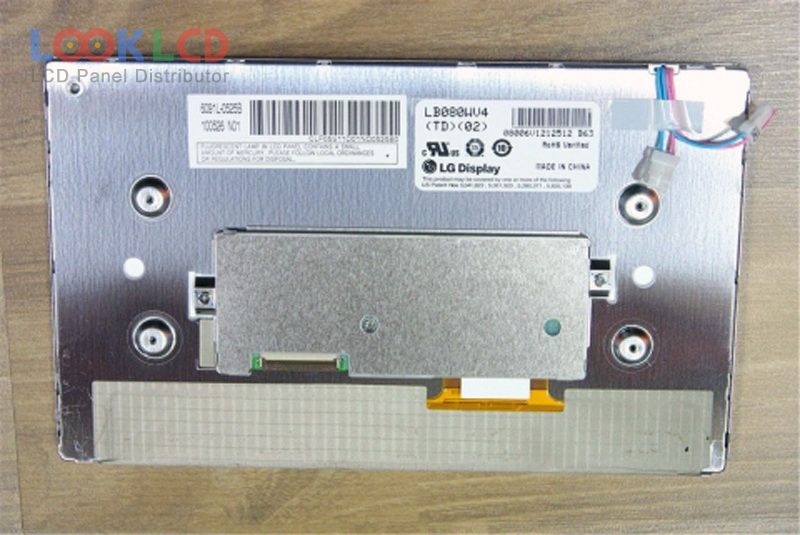

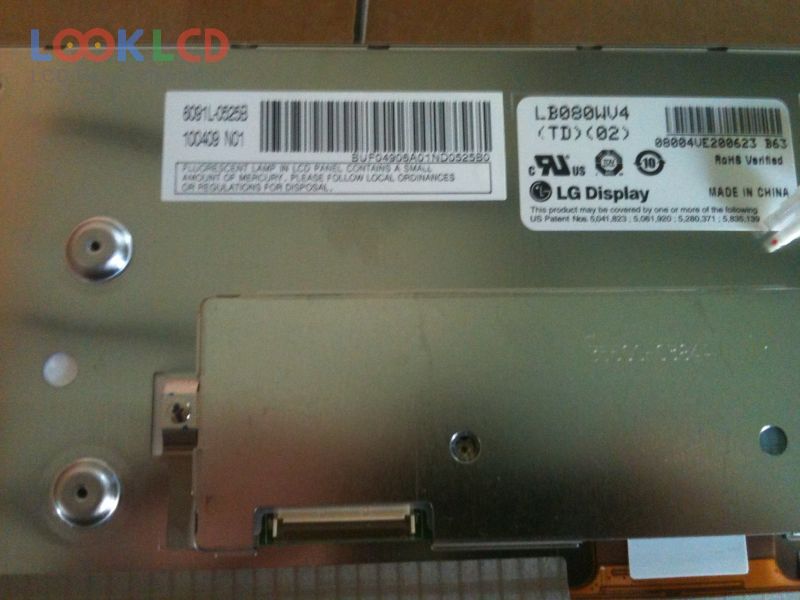

| PartNumber | LB080WV4-TD02 |
| Marca | LG Display |
| mărimea | 8.0 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 600 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | LG.Philips LCD |
| model de panou | LB080WV4-TD02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 176.64×99.36 mm |
| contur | 199×121 mm |
| suprafaţă | Antiglare |
| luminozitatea | 600 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 10/20 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | CNS |
