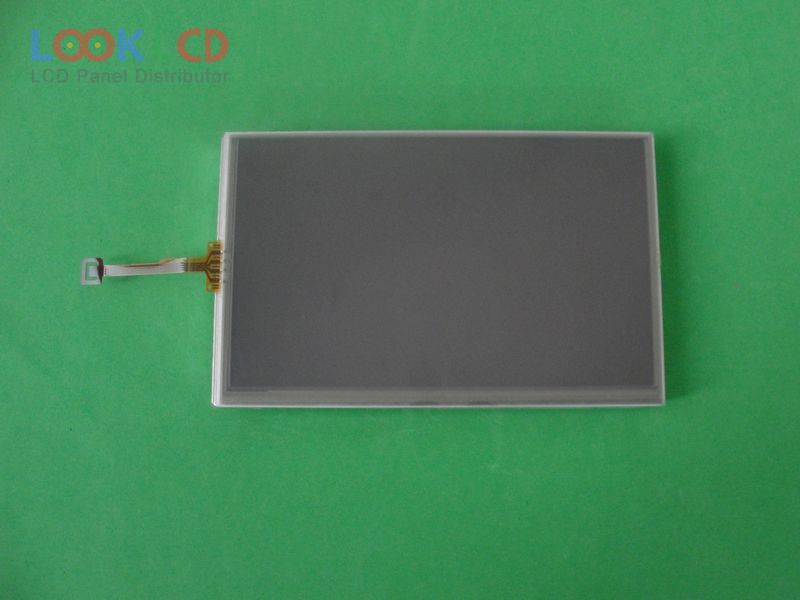

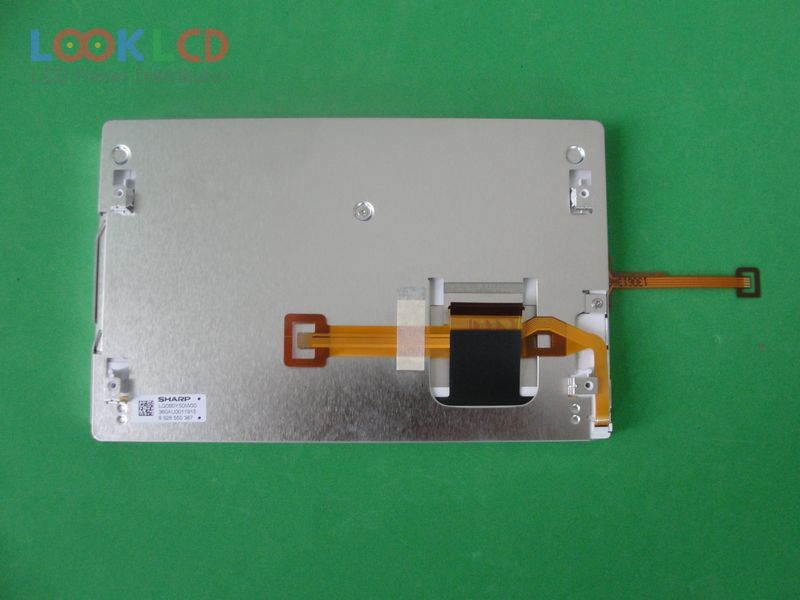

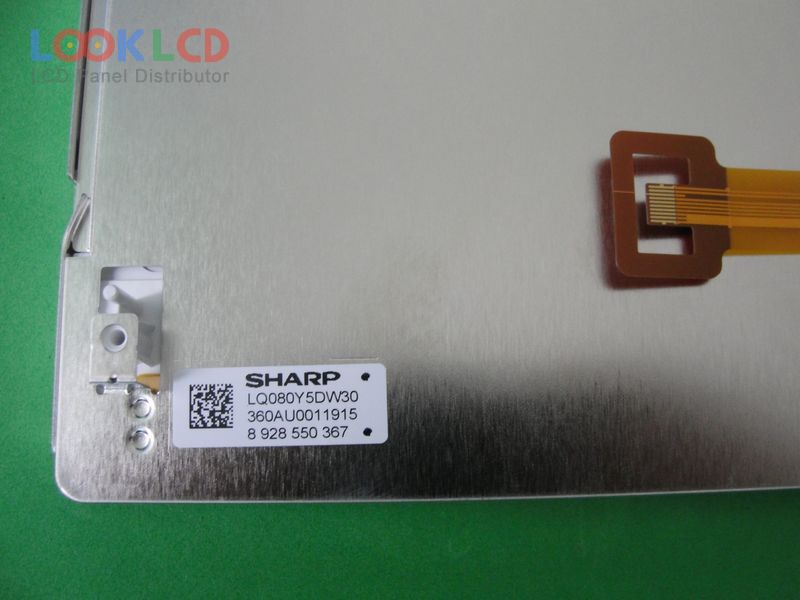

| PartNumber | LQ080Y5DW30 |
| Marca | SHARP |
| mărimea | 8.0 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 543 |
| CR | |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ080Y5DW30 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | ASV, Normally Black, Transmissive |
| Zonă activă | 174×104.4 mm |
| suprafaţă | |
| luminozitatea | 543 cd/m² (Typ.) |
| Raport de contrast | |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | |
| unghi de vedere | |
| tip lampa | WLED |
| interfață de semnal | Parallel RGB (1 ch, 6-bit) |
| aplicarea | CNS |
| LQ080T3AG01 | SHARP | 8.0 | 480×234 |
| LQ080T5GG01B | SHARP | 8.0 | 480×234 |
| LQ080V3DG01 | SHARP | 8.0 | 640×480 |
| LQ080Y5CGQ1 | SHARP | 8.0 | 800×480 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DR01 | SHARP | 8.0 | 800×480 |
| LQ080Y5DW03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DW30 | SHARP | 8.0 | 800×480 |
| LQ080Y5DZ03 | SHARP | 8.0 | 800×480 |
| LQ080Y5DZ30A | SHARP | 8.0 | 800×480 |
| 70WVW4A | SII | 7.0 | 800×480 |
| A070VW01 V1 | AUO | 7.0 | 800×480 |
| AM-800480R3TMQW-B2H | AMPIRE | 7.0 | 800×480 |
| C070VVN03.0 | AUO | 7.0 | 800×480 |
| C070VW04 V5 | AUO | 7.0 | 800×480 |
| G104V1-T01 | Innolux | 10.4 | 640×480 |
| LA050WQ1-TD01 | LG Display | 5.0 | 480×272 |
| LQ065T5DG05 | SHARP | 6.5 | 480×234 |
| LQ070T5DG01 | SHARP | 7.0 | 854×480 |
| LQ070T5DR02 | SHARP | 7.0 | 480×240 |
