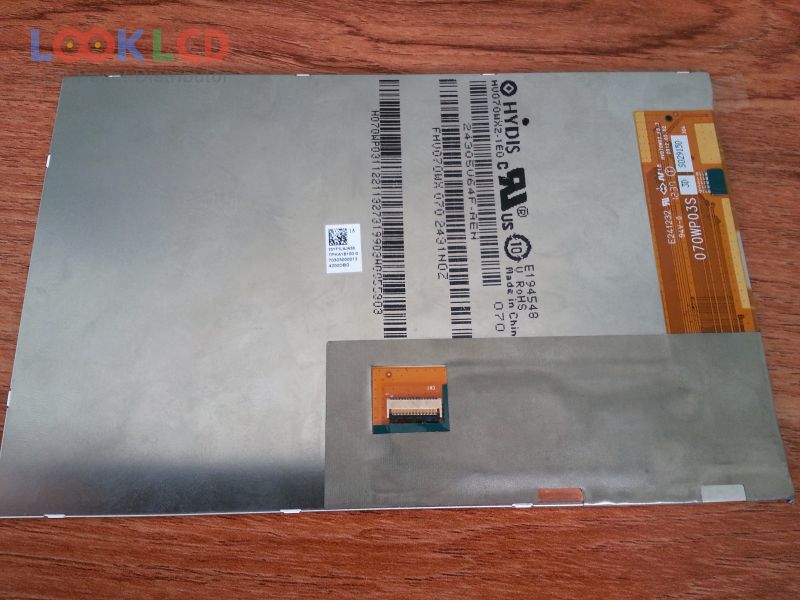

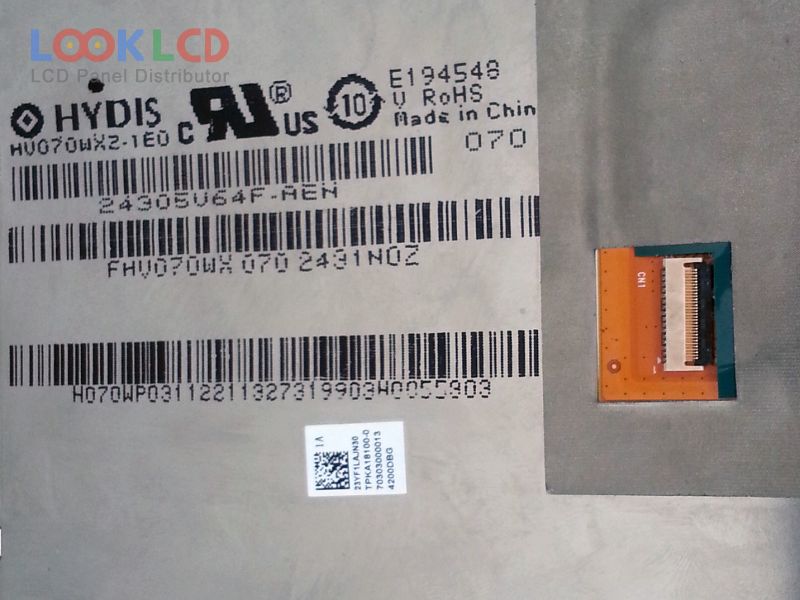

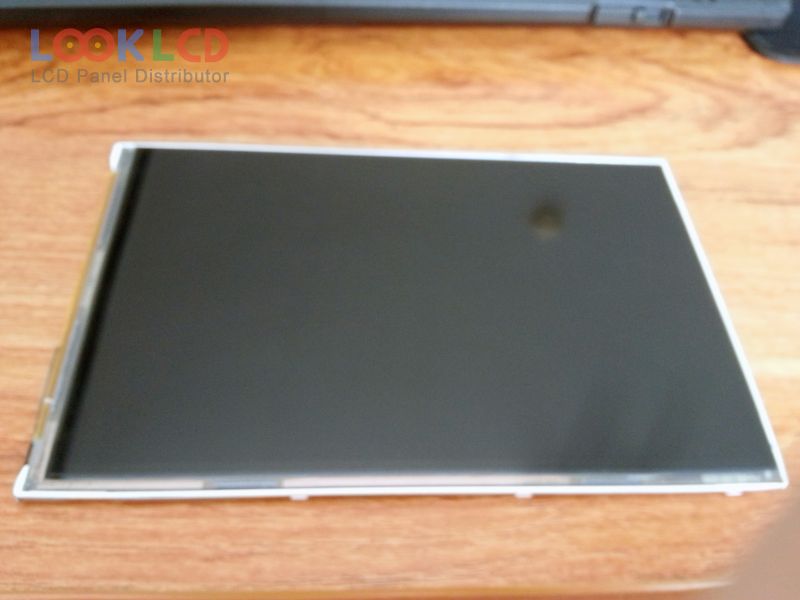

| PartNumber | HV070WX2-1E0 |
| Marca | HYDIS |
| mărimea | 7.0 |
| Aplicație | PAD |
| Rezoluţie | 800×1280 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 700:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | HYDIS |
| model de panou | HV070WX2-1E0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×1280 , WXGA |
| modul de afișare | HFFS, Normally Black, Transmissive |
| Zonă activă | 94.2×150.72 mm |
| contur | 104.32×161.67×4.05 mm |
| suprafaţă | |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 5S5PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 31 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
