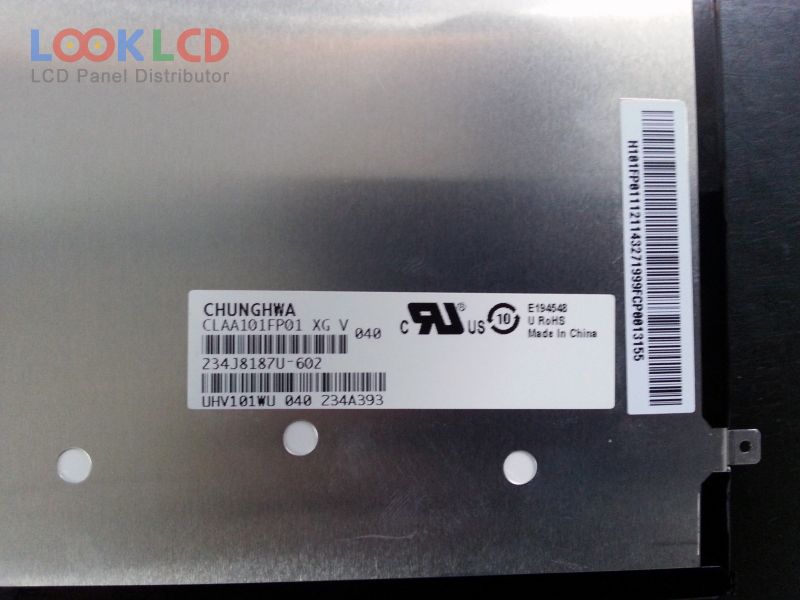

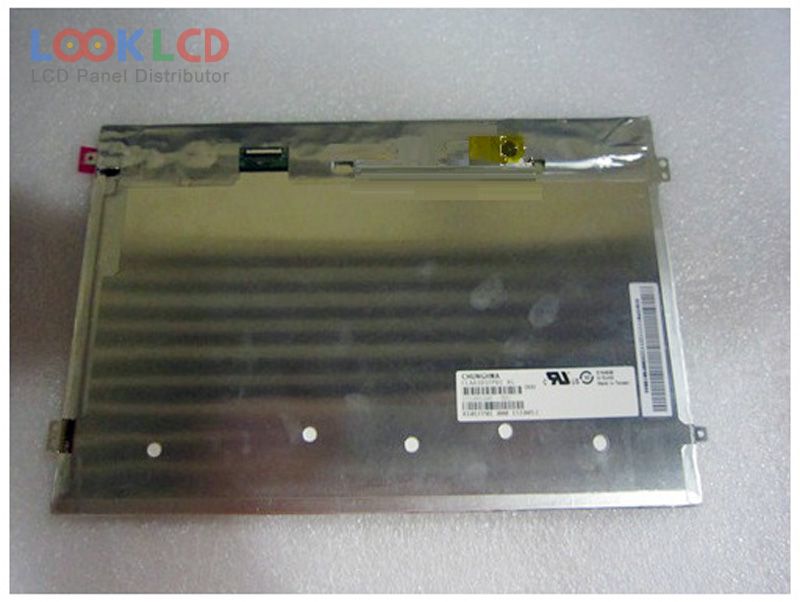

| PartNumber | CLAA101FP01 |
| Marca | CPT |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1920×1200 |
| Compoziţie | LCM |
| Luminozitate | 700 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | CPT |
| model de panou | CLAA101FP01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1920(RGB)×1200 , WUXGA |
| modul de afișare | HFFS, Normally Black, Transmissive |
| Zonă activă | 216.576×135.36 mm |
| suprafaţă | Hard coating, Antireflection |
| luminozitatea | 700 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | MIPI (4 data lanes), 45 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
