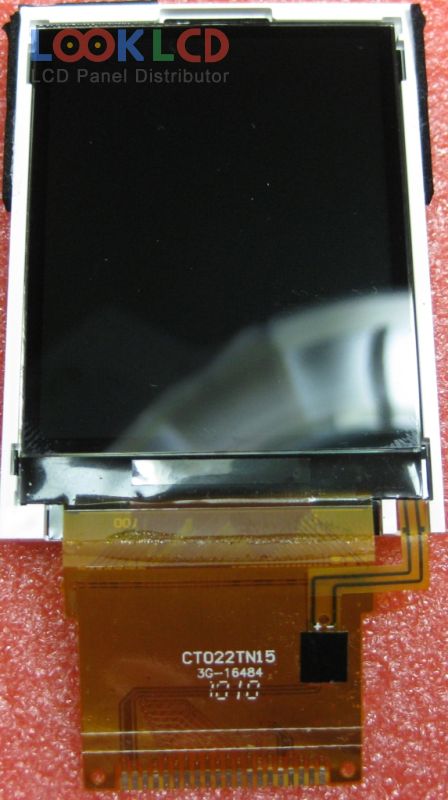

| PartNumber | CT022TN15 |
| Marca | Innolux |
| mărimea | 2.2 |
| Aplicație | MPH |
| Rezoluţie | 176×220 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 300:1 |
| Culori | 65K/262K |
| Iluminare de fundal | WLED |
| Interfață | CPU |
| marca panoului | INNOLUX |
| model de panou | CT022TN15 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 2.2 inch |
| rezoluţie | 176(RGB)×220 , QCIF+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 34.848×43.56 mm |
| contur | 42.3×57.5 mm |
| suprafaţă | |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 65K/262K , CIE193150% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 55/55/55/50 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4S1PWLEDWithout Driver |
| interfață de semnal | CPU, 20 pins |
| tensiune de intrare | 3.3/3.3V (Typ.)(VDD/VCI) |
| aplicarea | MPH |
