| PartNumber | TM055XDHP10 |
| Marca | Tianma |
| mărimea | 5.5 |
| Aplicație | MPH |
| Rezoluţie | 540×960 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | TIANMA |
| model de panou | TM055XDHP10 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.5 inch |
| rezoluţie | 540(RGB)×960 , qHD |
| modul de afișare | FFS, Normally Black, Transmissive |
| Zonă activă | 68.04×120.96 mm |
| contur | 72.14×130.86×1.95 mm |
| suprafaţă | Antiglare (Haze 42%) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193170% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 80Hz |
| tip lampa | 5S2PWLEDWithout Driver |

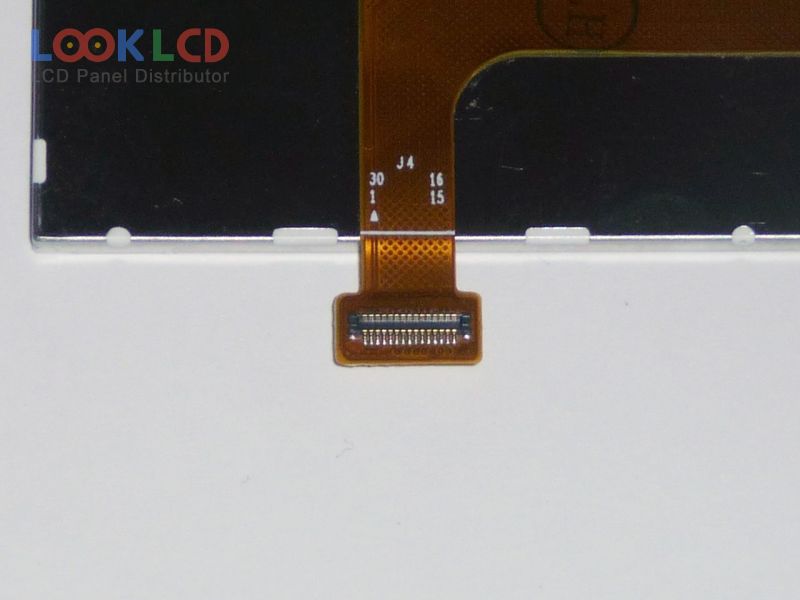

| interfață de semnal | MIPI (2 data lanes), 30 pins |
| tensiune de intrare | 1.8/2.8V (Typ.)(IOVCC/VCC) |
| aplicarea | MPH |
