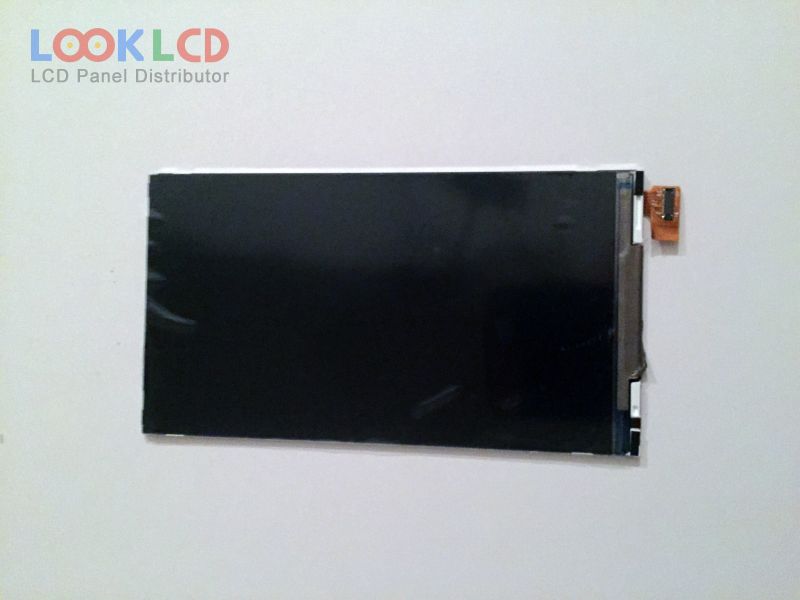

| PartNumber | TM055JDHP71 |
| Marca | Tianma |
| mărimea | 5.5 |
| Aplicație | MPH |
| Rezoluţie | 720×1280 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 900:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | TIANMA |
| model de panou | TM055JDHP71 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.5 inch |
| rezoluţie | 720(RGB)×1280 , WXGA |
| modul de afișare | SFT, Normally Black, Transmissive |
| Zonă activă | 68.04×120.96 mm |
| contur | 71.14×130.76 mm |
| suprafaţă | |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 35 (Max.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S2PWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 30 pins |
| tensiune de intrare | 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN) |
| aplicarea | MPH |
