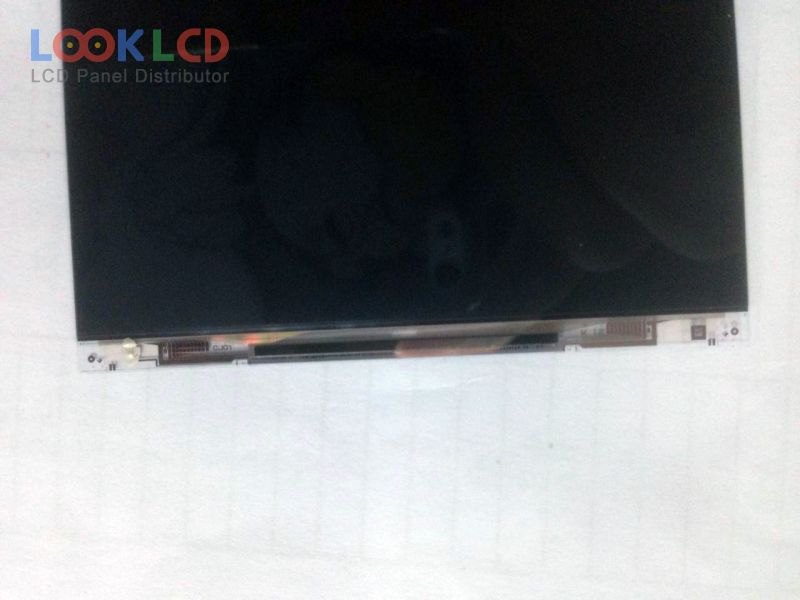

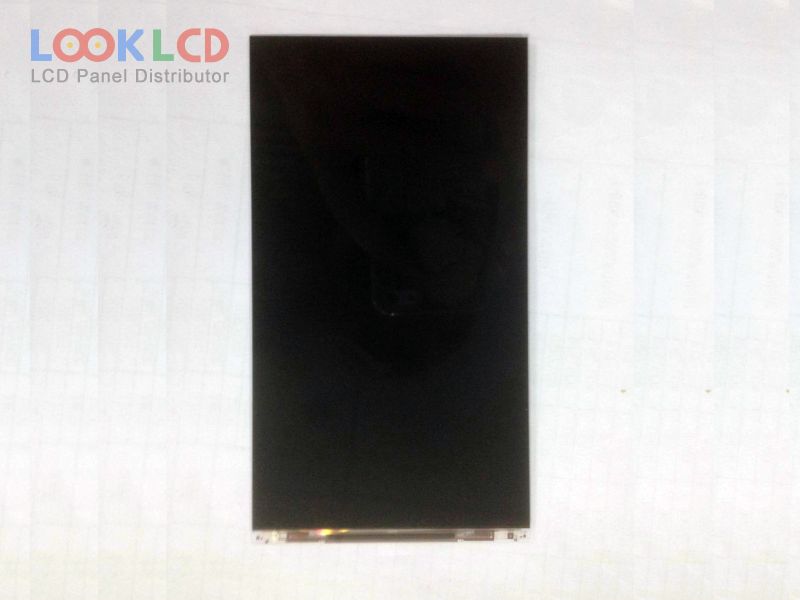

| PartNumber | LQ055T3SX04 |
| Marca | SHARP |
| mărimea | 5.5 |
| Aplicație | MPH |
| Rezoluţie | 1080×1920 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | No B/L |
| Interfață | |
| marca panoului | SHARP |
| model de panou | LQ055T3SX04 |
| tip panou | IGZO TFT-LCD , CELL |
| dimensiunea panoului | 5.5 inch |
| rezoluţie | 1080(RGB)×1920 , FHD |
| modul de afișare | New Mode2, Normally Black, Transmissive |
| Zonă activă | 68.04×120.96 mm |
| contur | 70.84×128.16 mm |
| suprafaţă | |
| adâncimea sticlei | 0.20+0.20 mm |
| transmisivitatea | 4.2% (Typ.)(with Polarizer) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193170% |
| timp de raspuns | 35 (Max.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| driver ic | COG Built-in NT35532 |
| aplicarea | MPH |
