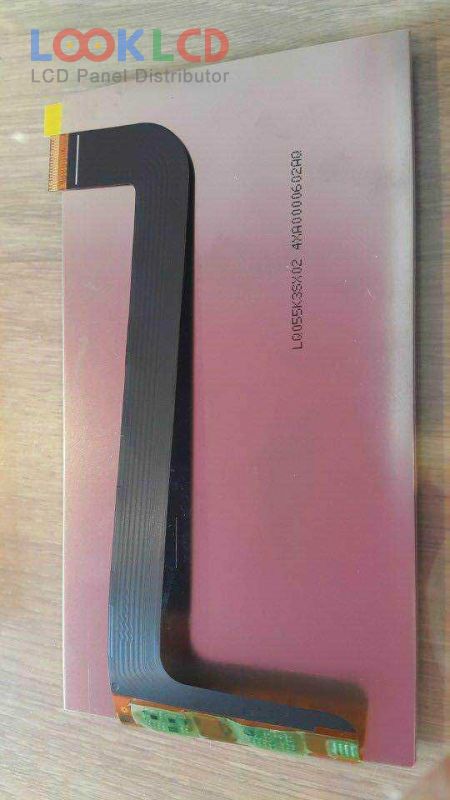

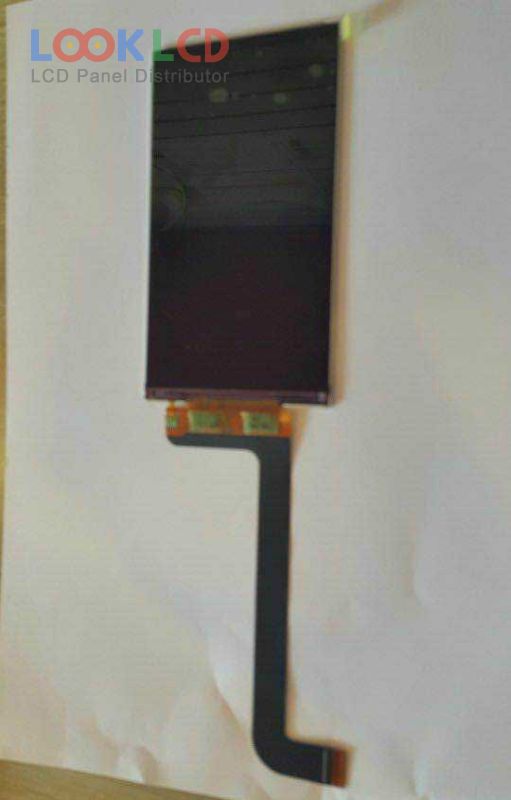

| PartNumber | LQ055K3SX02 |
| Marca | SHARP |
| mărimea | 5.5 |
| Aplicație | MPH |
| Rezoluţie | 720×1280 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | SHARP |
| model de panou | LQ055K3SX02 |
| tip panou | IGZO TFT-LCD , LCM |
| dimensiunea panoului | 5.5 inch |
| rezoluţie | 720(RGB)×1280 , WXGA |
| modul de afișare | New Mode2, Normally Black, Transmissive |
| Zonă activă | 68.04×120.96 mm |
| contur | 72.3×130.39 mm |
| suprafaţă | |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193170% |
| timp de raspuns | 35 (Max.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 stringsWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 39 pins |
| tensiune de intrare | 1.8/2.8V (Typ.)(IOVCC/VCC) |
| aplicarea | MPH |
