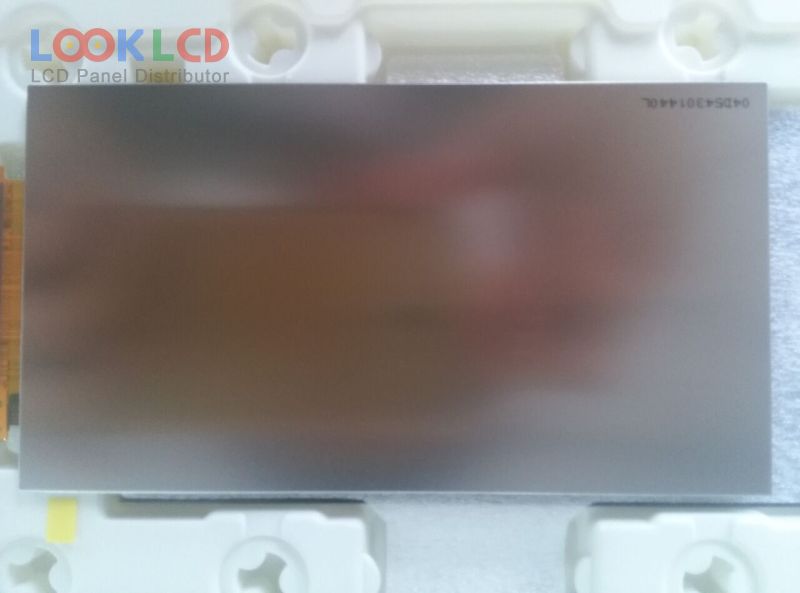

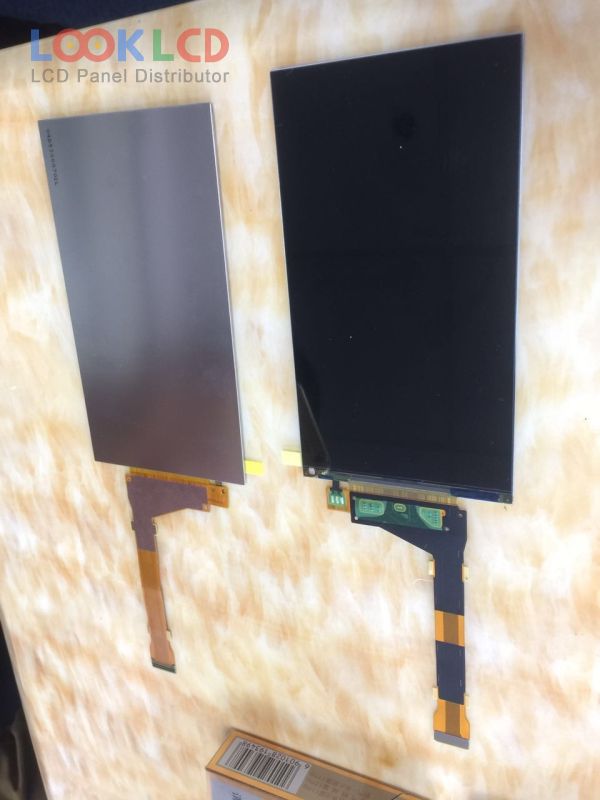

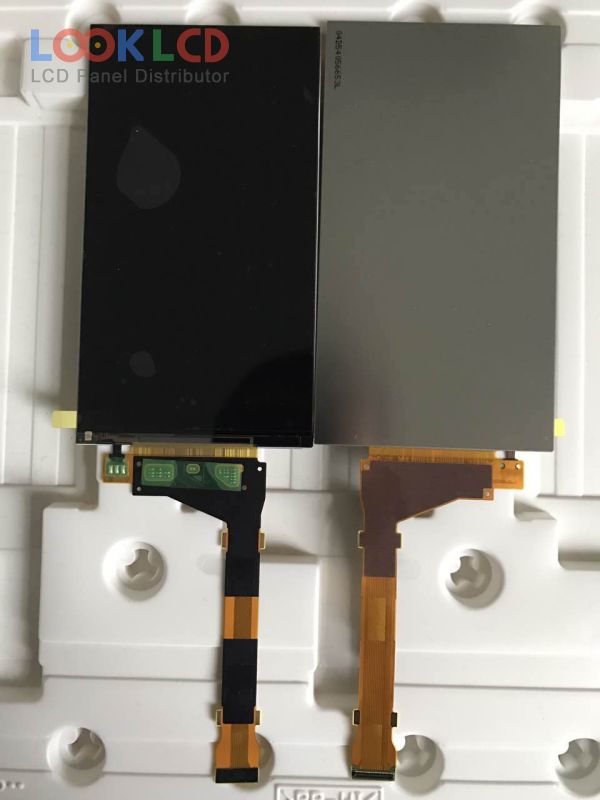

| PartNumber | LS055R1SX04 |
| Marca | SHARP |
| mărimea | 5.5 |
| Aplicație | MPH |
| Rezoluţie | 1440×2560 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 1300:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | SHARP |
| model de panou | LS055R1SX04 |
| tip panou | CG-Silicon , LCM |
| dimensiunea panoului | 5.5 inch |
| rezoluţie | 1440(RGB)×2560 , Quad-HD |
| modul de afișare | New Mode2, Normally Black, Transmissive |
| Zonă activă | 68.04×120.96 mm |
| contur | 70.94×128.49×1.45 mm |
| suprafaţă | |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 1300:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193170% |
| timp de raspuns | 35 (Max.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8S2PWLEDWithout Driver |
| interfață de semnal | MIPI (2 ch, 4 data lanes), 50 pins |
| tensiune de intrare | 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN) |
| aplicarea | MPH |
