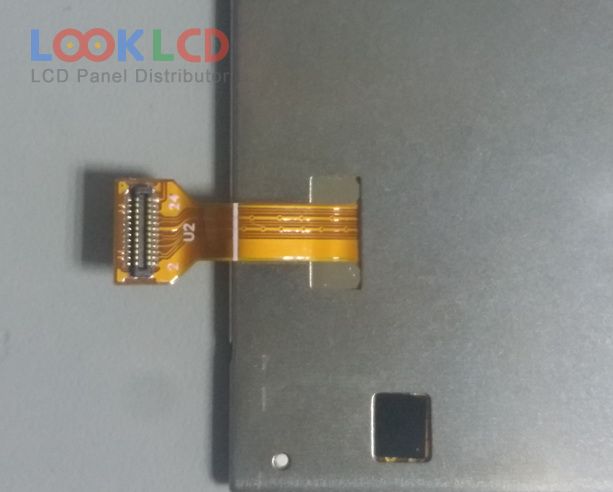

| PartNumber | BTL454885-W698L |
| Marca | BOE |
| mărimea | 4.5 |
| Aplicație | MPH |
| Rezoluţie | 480×854 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 700:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | BOE |
| model de panou | BTL454885-W698L |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 4.5 inch |
| rezoluţie | 480(RGB)×854 , FWVGA |
| modul de afișare | ADS, Normally Black, Transmissive |
| Zonă activă | 55.44×98.637 mm |
| contur | 59.9×108.88 mm |
| suprafaţă | Glare (Haze 0%), Hard coating |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193168% |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8S1PWLEDWithout Driver |
| interfață de semnal | MIPI (2 data lanes), 24 pins |
| tensiune de intrare | 1.8/2.85V (Typ.)(IOVCC/VCI) |
| aplicarea | MPH |
| ACX435AKN-7 | SONY | 4.5 | 800×1280 |
| BTL454885-W698L | BOE | 4.5 | 480×854 |
| BTL455496-W613L | BOE | 4.5 | 540×960 |
| BV045WVM-N00 | BOE | 4.5 | 480×800 |
| H446TAN01.1 | AUO | 4.5 | 720×1280 |
| L5S30883P00 | SANYO | 4.5 | 480×240 |
| LH450WX3-SD01 | LG Display | 4.5 | 720×1280 |
| PW045XS1 | E Ink | 4.5 | 320×234 |
| PW045XS2 | E Ink | 4.5 | 320×234 |
| TM045XDZP08 | Tianma | 4.5 | 540×960 |
| ACX565AKM-7 | SONY | 3.5 | 800×480 |
| AMS320FS03 | Samsung | 3.2 | 320×480 |
| DX08D11VM0AAA | KOE | 3.0 | 480×800 |
| IROP018-010-0128064-W | Other | 0.96 | 128×64 |
| LH320WV3-SH02 | LG Display | 3.2 | 480×800 |
| LQ043Y1DX01B | SHARP | 4.3 | 480×800 |
| LS023B3UY01 | SHARP | 2.3 | 360×400 |
| LS036Y1LX03 | SHARP | 3.6 | 480×800 |
| LS038Y3LX01 | SHARP | 3.8 | 480×800 |
| LT032MDQ7000 | JDI | 3.2 | 360×480 |
