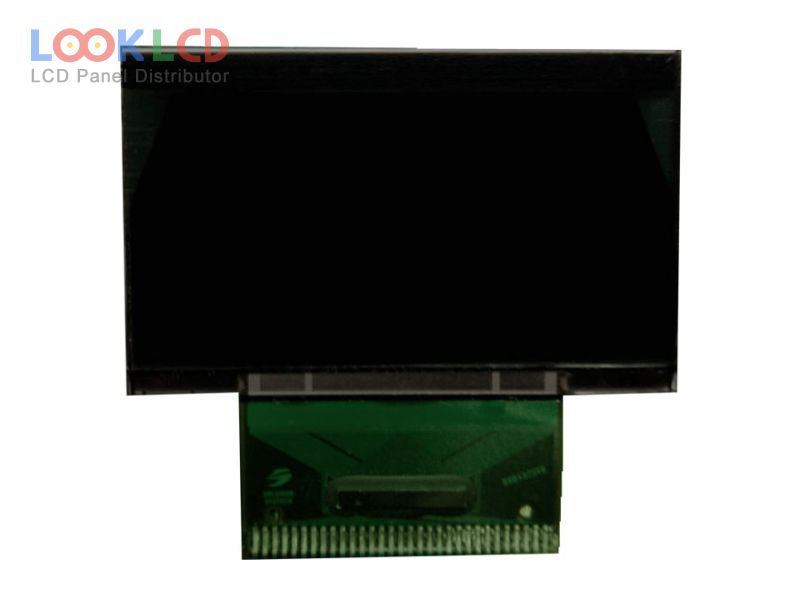

| PartNumber | OEL9M0053-Y-E |
| Marca | Other |
| mărimea | 1.6 |
| Aplicație | MPH |
| Rezoluţie | 128×64 |
| Compoziţie | OLED |
| Luminozitate | 80 |
| CR | 10000:1 |
| Culori | Grayscale(Y) |
| Iluminare de fundal | self |
| Interfață | CPU/SPI |
| marca panoului | TRULY |
| model de panou | OEL9M0053-Y-E |
| tip panou | PM-OLED , OLED |
| dimensiunea panoului | 1.6 inch |
| rezoluţie | 128×64 |
| Zonă activă | 36.45×18.21 mm |
| contur | 46.83×28.77×2.2 mm |
| suprafaţă | |
| luminozitatea | 80 cd/m² (Typ.) |
| Raport de contrast | 10000 : 1 (Min.) |
| culorile afișajului | Grayscale(Y) (4-bit) |
| unghi de vedere | 80/80/80/80 (Min.)(L/R/U/D) |
| frecvență | 100Hz |
| driver ic | TAB Built-in SSD1325T6R1 |
| interfață de semnal | 8-bit 6800/8080 parallel, SPI, 31 pins |
| tensiune de intrare | 3.0/12.0V (Typ.)(VDD/VCC) |
| aplicarea | MPH |
