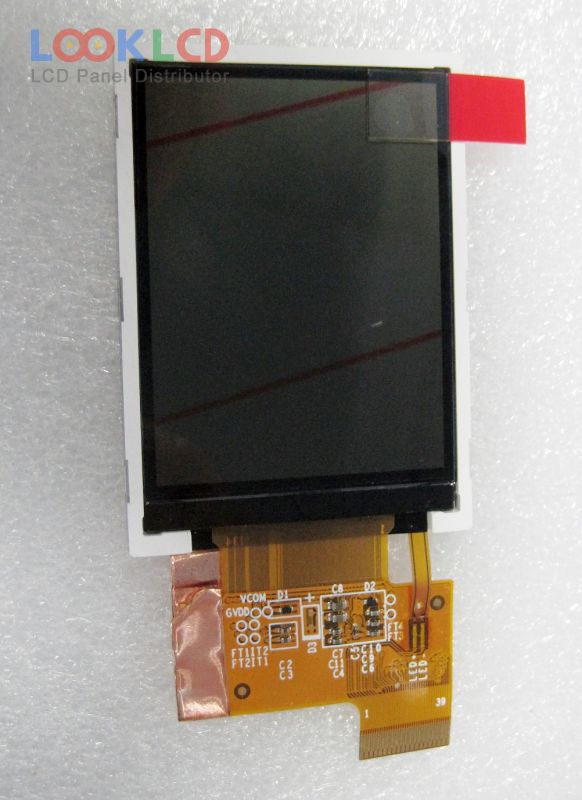

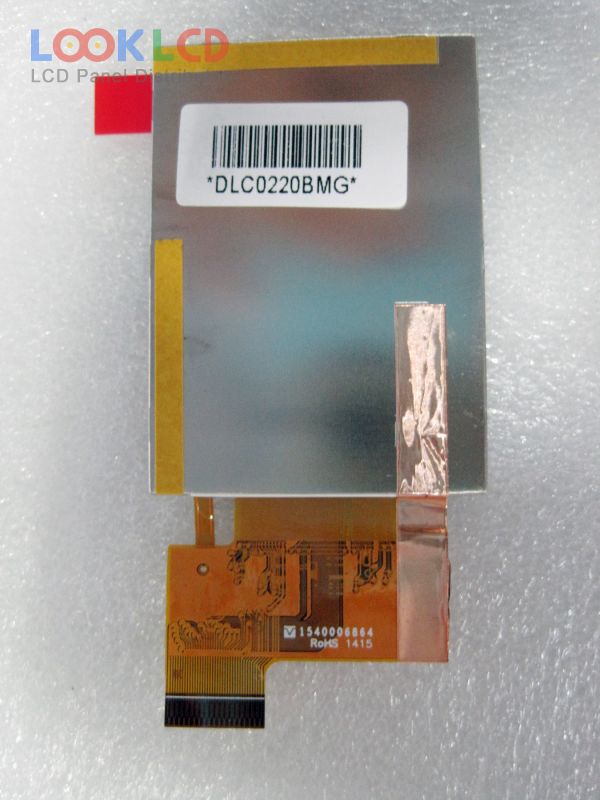

| PartNumber | DLC0220BMG |
| Marca | Other |
| mărimea | 2.2 |
| Aplicație | MPH |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 90 |
| CR | 120:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | DLC |
| model de panou | DLC0220BMG 2 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 2.2 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | ECB, Normally White, Transflective |
| Zonă activă | 33.84×45.12 mm |
| contur | 40.6×56.6 mm |
| suprafaţă | Clear, Hard coating (3H) |
| luminozitatea | 90 cd/m² (Typ.) |
| Raport de contrast | 120:1 (Typ.)(Transmissive) |
| culorile afișajului | 262K (6-bit), CIE193130% |
| timp de raspuns | 35 (Typ.)(Tr+Td) |
| unghi de vedere | 40/45/48/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| tensiune de intrare | 2.8V (Typ.)(VDD) |
| aplicarea | MPH |
| DLC0200EUG | Other | 2.0 | 240×320 |
| DLC0220BMG | Other | 2.2 | 240×320 |
| DLC0220KZG | Other | 2.2 | 320×320 |
| DLC0240ACOG-3 | Other | 2.4 | 240×320 |
| DLC0240LZG-4 | Other | 2.4 | 240×320 |
| DLC0270CUOF | Other | 2.7 | 256×64 |
| DLC0283FZG-7 | Other | 2.8 | 240×320 |
| LS022Q8UD04 | SHARP | 2.2 | 240×320 |
| TM022GDH11 | Tianma | 2.2 | 176×220 |
| TM022HDHT1-00 | Tianma | 2.2 | 240×320 |
| ACX450AKN-7 | JDI | 5.0 | 1080×1920 |
| AMS300FW01-0 | Samsung | 3.0 | 240×400 |
| CLAF058LA31 | CPT | 5.8 | 540×960 |
| ET0320A5DM9 | EDT | 3.2 | 240×320 |
| H347QN02 V0 | AUO | 3.5 | 320×480 |
| HSD015F4N2-B | HannStar | 1.5 | 128×128 |
| LH450WX1-SD01 | LG Display | 4.5 | 720×1280 |
| LS043T1LX01A | SHARP | 4.3 | 540×960 |
| PJ035MA-02A | Innolux | 3.5 | 320×480 |
| TM040YDZ01 | Tianma | 4.0 | 480×800 |
