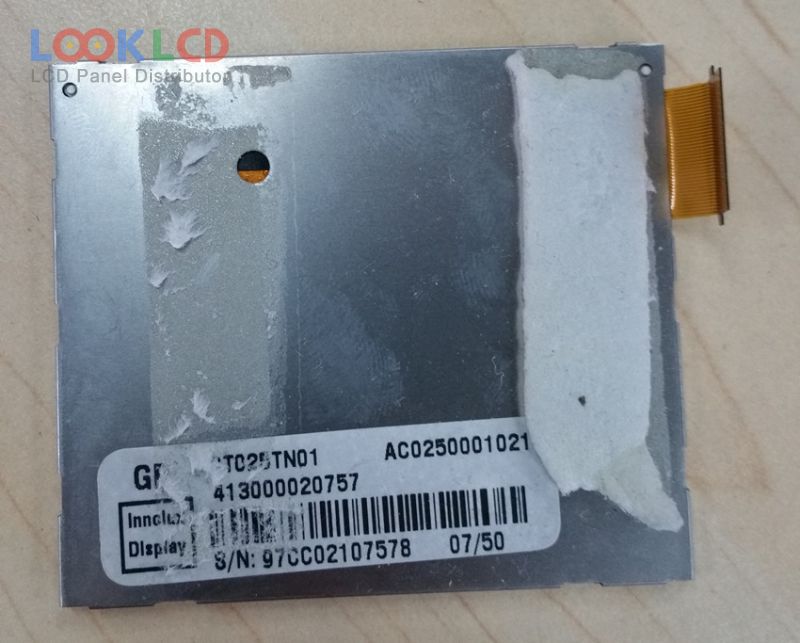

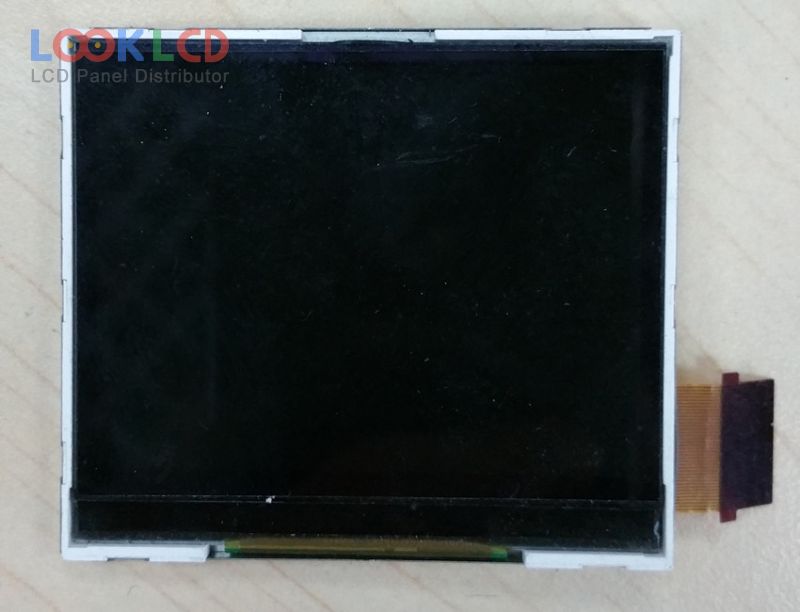

| PartNumber | CT025TN01 |
| Marca | Innolux |
| mărimea | 2.5 |
| Aplicație | DSC |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 250:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | INNOLUX |
| model de panou | CT025TN01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 2.5 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 49.92×37.44 mm |
| contur | 56.4×49.12×2.85 mm |
| suprafaţă | Hard coating |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 250:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/55/15 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 3S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 39 pins |
| tensiune de intrare | 3.3/3.3V (Typ.)(VDDI/VDD) |
| aplicarea | DSC |
| 990000270 | TPO | 2.5 | 320×240 |
| A025DN01 V3 | AUO | 2.5 | 320×240 |
| CT022TN15 | Innolux | 2.2 | 176×220 |
| CT024TN04 V.F | Innolux | 2.4 | 240×320 |
| CT025TN01 | Innolux | 2.5 | 320×240 |
| LS025A8DZ01S | SHARP | 2.5 | 320×240 |
| LTV250QV-F03 | Samsung | 2.5 | 320×240 |
| PA025XSC | E Ink | 2.5 | 480×234 |
| TD025THEE6 | TPO | 2.5 | 640×240 |
| TD025THEEA | TPO | 2.5 | 640×240 |
| A027DN01 V1 | AUO | 2.7 | 320×240 |
| A027DN03 V4 | AUO | 2.7 | 320×240 |
| A027DN04 V3 | AUO | 2.7 | 320×240 |
| A027DN04 V8 | AUO | 2.7 | 320×240 |
| A030DN05 V0 | AUO | 3.0 | 320×240 |
| A035QN01 V4 | AUO | 3.5 | 320×240 |
| ACX318ELN | SONY | 1.5 | 490×240(dot) |
| CLAA030HA22DE | CPT | 3.0 | 960×480(dot) |
| PA025XSF | E Ink | 2.5 | 480×234 |
| TM035KDH05 | Tianma | 3.5 | 320×240 |
