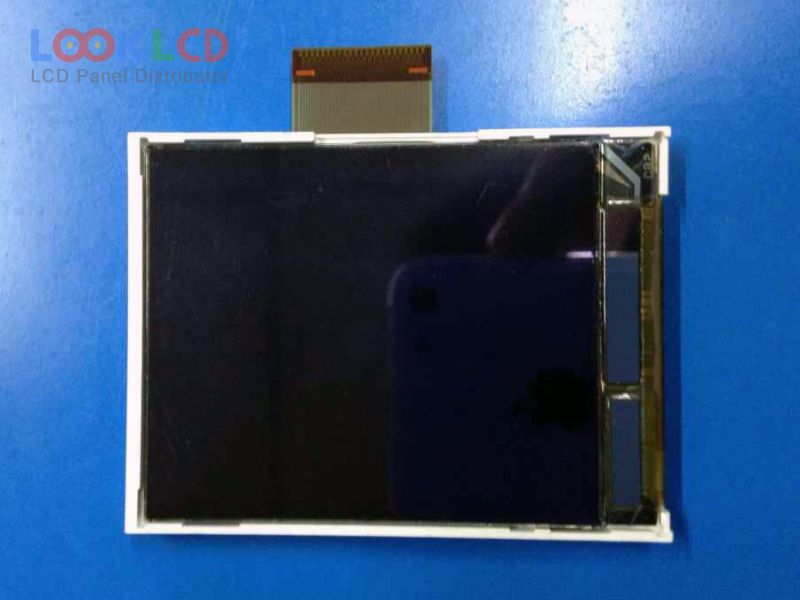

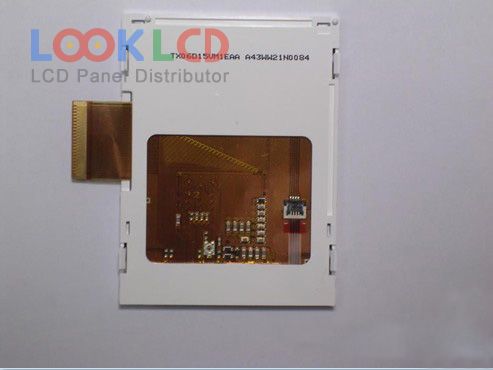

| PartNumber | TX06D15VM1EAA |
| Marca | KOE |
| mărimea | 2.2 |
| Aplicație | MPH |
| Rezoluţie | 176×220 |
| Compoziţie | LCM |
| Luminozitate | 60 |
| CR | 40:1 |
| Culori | 65K/262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | HITACHI |
| model de panou | TX06D15VM1EAA |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 2.2 inch |
| rezoluţie | 176(RGB)×220 , QCIF+ |
| modul de afișare | IPS, Normally Black, Transflective |
| Zonă activă | 34.848×43.56 mm |
| contur | 41.85×56 mm |
| suprafaţă | |
| luminozitatea | 60 cd/m² (Typ.) |
| Raport de contrast | 40:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| culorile afișajului | 65K/262K |
| timp de raspuns | 35 (Typ.)(Tr+Td) |
| unghi de vedere | |
| tip lampa | 1S3PWLED |
| interfață de semnal | Parallel RGB + SPI, 45 pins |
| tensiune de intrare | 2.8/2.8V (Typ.)(VCC/VCI) |
| rohs: | |
| aplicarea | MPH |
| AM-240320-022F | Other | 2.2 | 240×320 |
| COM22H2P16ULC | ORTUSTECH | 2.2 | 240×320 |
| CT022TN15 | Innolux | 2.2 | 176×220 |
| DLC0220KZG | Other | 2.2 | 320×320 |
| LMS220GF08 | Samsung | 2.2 | 240×320 |
| LTS220QC-F0J | Samsung | 2.2 | 176×220 |
| TM022GDH11 | Tianma | 2.2 | 176×220 |
| TM022HDH31 | Tianma | 2.2 | 240×320 |
| TM022HDHT1-05 | Tianma | 2.2 | 240×320 |
| TX06D15VM1EAA | KOE | 2.2 | 176×220 |
| AMEJ006 | Samsung | 2.8 | 240×400 |
| CLAF040LE21 AX | CPT | 4.0 | 480×800 |
| HSD060FMW1-C00 | HannStar | 6.0 | 540×960 |
| LH480HX1-SD01 | LG Display | 4.8 | 480×1024 |
| LMS220GF08 | Samsung | 2.2 | 240×320 |
| LMS241GF31 | Samsung | 2.4 | 240×320 |
| LMS320HF46 | Samsung | 3.2 | 240×432 |
| LT031MDZ4000 | JDI | 3.1 | 720×720 |
| TM028LDZ09 | Tianma | 2.8 | 240×400 |
| TM032PDZ17 | Tianma | 3.2 | 320×480 |
