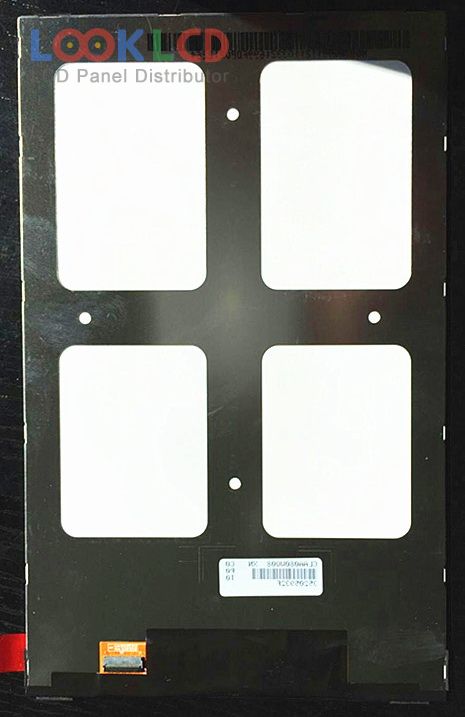

| PartNumber | CLAA080WQ08 XN |
| Marca | CPT |
| mărimea | 8.0 |
| Aplicație | PAD |
| Rezoluţie | 800×1280 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 900:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | CPT |
| model de panou | CLAA080WQ08 XN |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.0 inch |
| rezoluţie | 800(RGB)×1280 , WXGA |
| modul de afișare | HFFS, Normally Black, Transmissive |
| Zonă activă | 107.64×172.224 mm |
| contur | 114.6×184.1×4 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193153% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 7S3PWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 31 pins |
| tensiune de intrare | 1.8/3.3V (Typ.)(VDDI/VCCI) |
| aplicarea | PAD |
