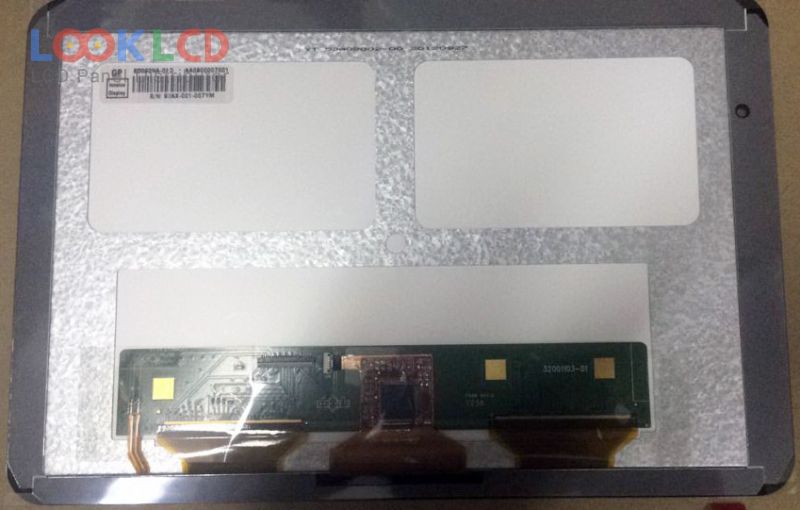

| PartNumber | ED090NA-01D |
| Marca | Innolux |
| mărimea | 9.0 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | Assembly |
| Luminozitate | 200 |
| CR | 700:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | ED090NA-01D |
| tip panou | a-Si TFT-LCD , Assembly |
| dimensiunea panoului | 9.0 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| Zonă activă | 193.92×121.2 mm |
| contur | 235.12×156.4×7.84 mm |
| suprafaţă | Hard coating (7H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| unghi de vedere | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 51 pins |
| tensiune de intrare | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | PAD |
