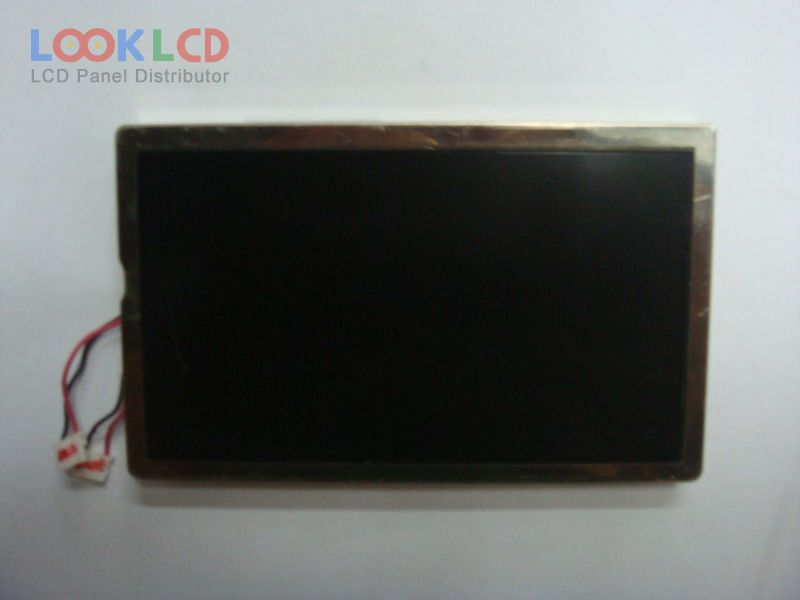

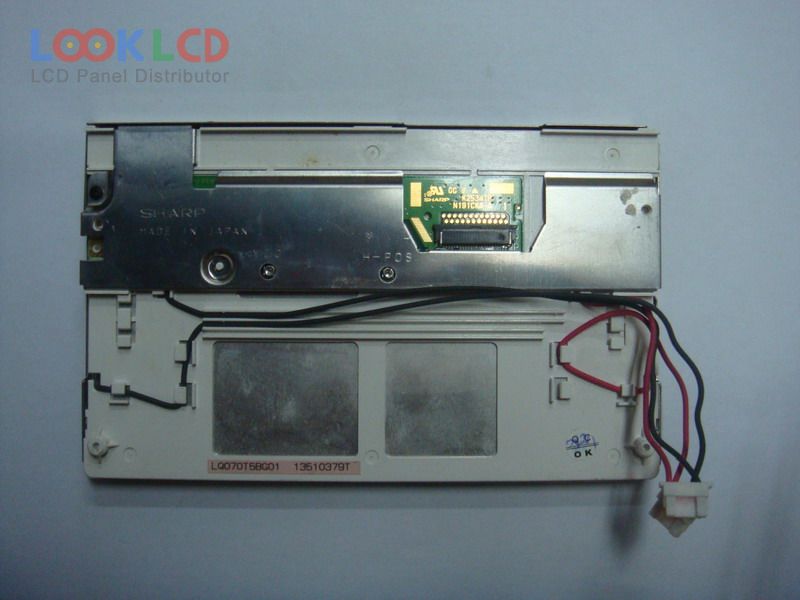

| PartNumber | LQ070T5BG01 |
| Marca | SHARP |
| mărimea | 7.0 |
| Aplicație | VDP |
| Rezoluţie | 480×234 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 60:1 |
| Culori | Full color |
| Iluminare de fundal | CCFL |
| Interfață | Analog |
| marca panoului | SHARP |
| model de panou | LQ070T5BG01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 480(RGB)×234 |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 155.52×87.75 mm |
| contur | 173×106 mm |
| suprafaţă | Antiglare |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 60:1 (Min.) |
| culorile afișajului | Full color |
| timp de raspuns | 30/50 (Typ.)(Tr/Td) |
| unghi de vedere | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | Analog RGB + Composite Video (NTSC/PAL), 24 pins |
| tensiune de intrare | 5.3/13/-16V (VSH/VGH/VGL) |
| aplicarea | VDP |
