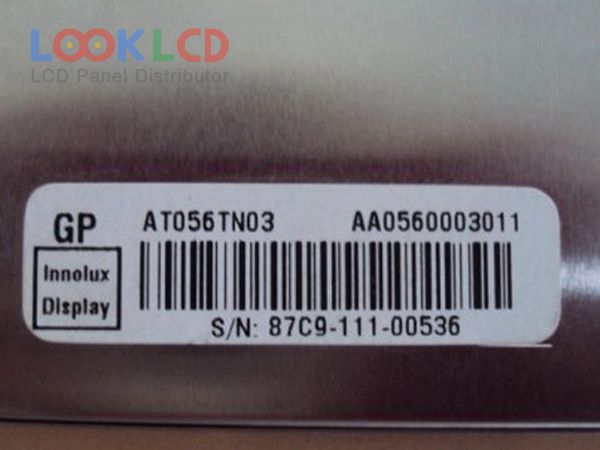

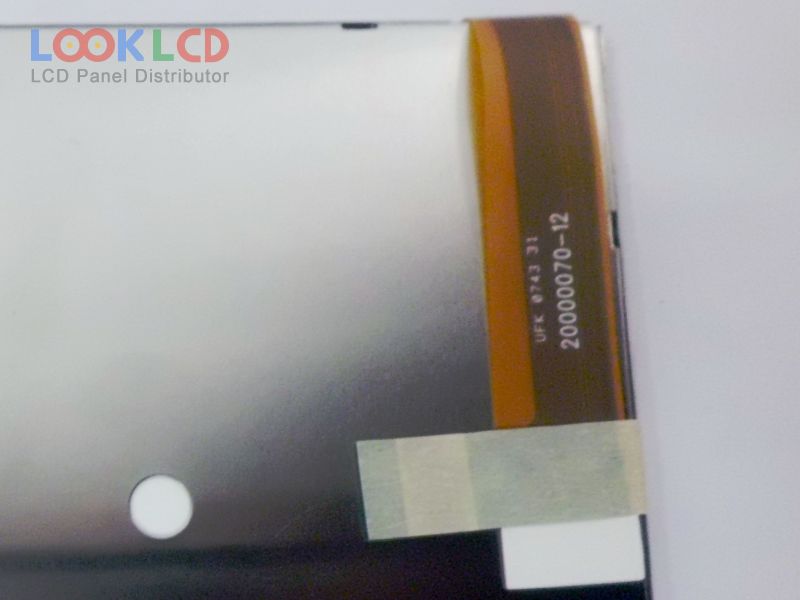

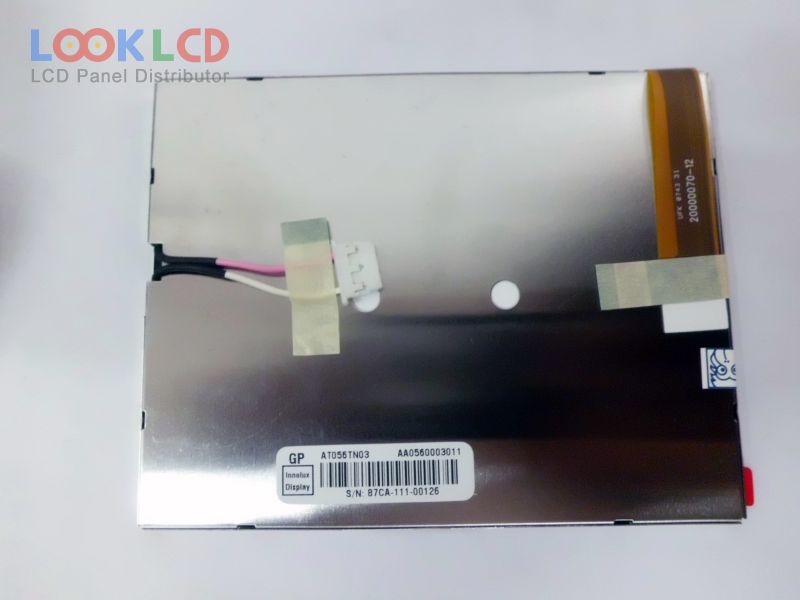

| PartNumber | AT056TN03 |
| Marca | Innolux |
| mărimea | 5.6 |
| Aplicație | VDP |
| Rezoluţie | 320×234 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 300:1 |
| Culori | |
| Iluminare de fundal | CCFL |
| Interfață | Analog |
| marca panoului | INNOLUX |
| model de panou | AT056TN03 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.6 inch |
| rezoluţie | 320(RGB)×234 |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 113.28×84.708 mm |
| contur | 126.5×100 mm |
| suprafaţă | |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | |
| timp de raspuns | 15/20 (Typ.)(Tr/Td) |
| unghi de vedere | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | TFT Specific Analog RGB, 26 pins |
| tensiune de intrare | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| aplicarea | VDP |
| AT050TN22 V.1 | Innolux | 5.0 | 640×480 |
| AT050TN23 V.1 | Innolux | 5.0 | 640×480 |
| AT050TN33 | Innolux | 5.0 | 480×272 |
| AT050TN33 V.1 | Innolux | 5.0 | 480×272 |
| AT050TN34 | Innolux | 5.0 | 480×272 |
| AT050TN35 | Innolux | 5.0 | 480×272 |
| AT056TN52 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.2 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.4 | Innolux | 5.6 | 640×480 |
| AT056TN53 V.1 | Innolux | 5.6 | 640×480 |
| A040CN01 V2 | AUO | 4.0 | 480×234 |
| A070FW03 V3 | AUO | 7.0 | 480×234 |
| A070FW03 V4 | AUO | 7.0 | 480×234 |
| AT050TN22 V.1 | Innolux | 5.0 | 640×480 |
| DLC0500AIG-2 | Other | 5.0 | 640×480 |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| LR700BA9005 | Innolux | 7.0 | 480×234 |
| PA050XSH | E Ink | 5.0 | 320×234 |
| PA064DS1 | E Ink | 6.4 | 320×234 |
| TM056KDH01 | Tianma | 5.6 | 320×234 |
