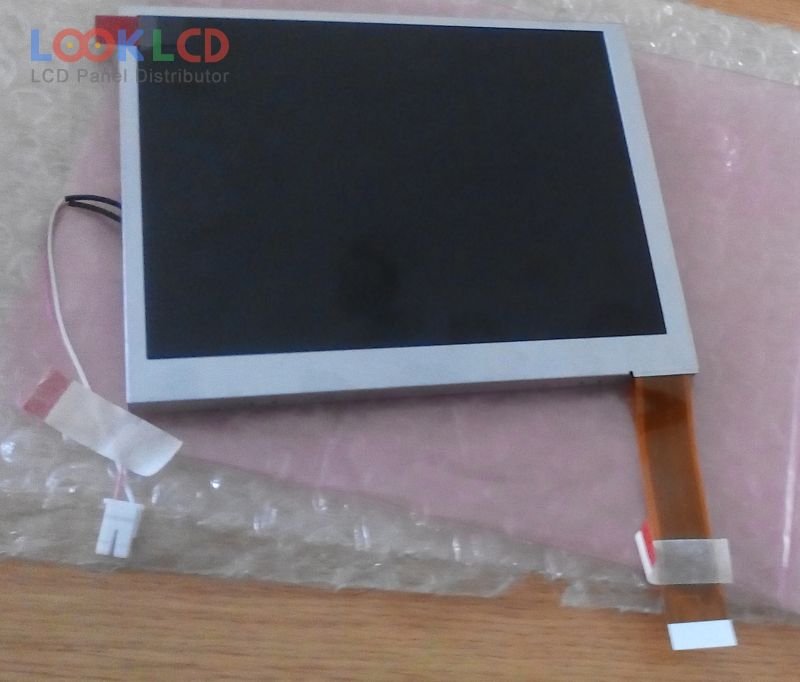

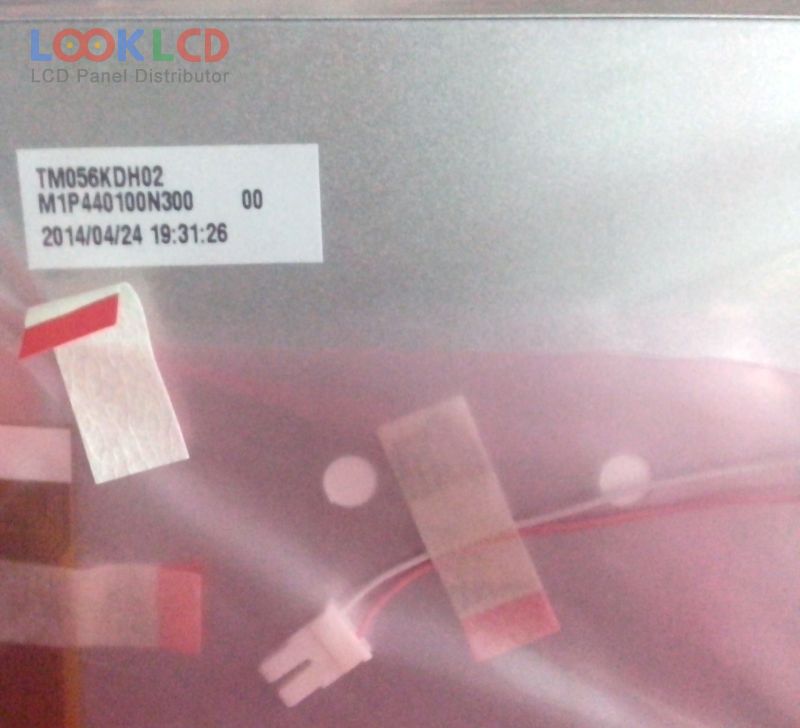

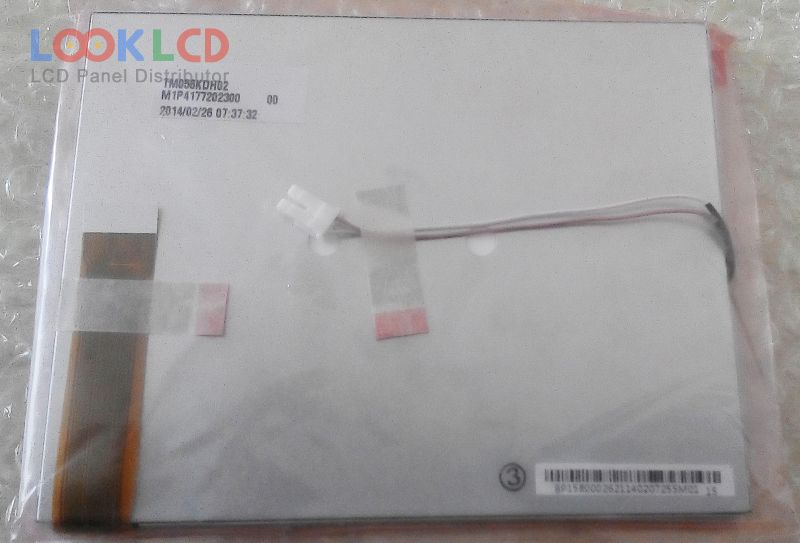

| PartNumber | TM056KDH02 |
| Marca | Tianma |
| mărimea | 5.6 |
| Aplicație | VDP |
| Rezoluţie | 320×234 |
| Compoziţie | LCM |
| Luminozitate | 330 |
| CR | 300:1 |
| Culori | Full color |
| Iluminare de fundal | WLED |
| Interfață | Analog |
| marca panoului | TIANMA |
| model de panou | TM056KDH02 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.6 inch |
| rezoluţie | 320(RGB)×234 |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 113.28×84.708 mm |
| contur | 126.5×100 mm |
| suprafaţă | Antiglare |
| luminozitatea | 330 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | Full color , CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 2S7PWLEDWithout Driver |
| interfață de semnal | TFT Specific Analog RGB, 26 pins |
| tensiune de intrare | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | VDP |
