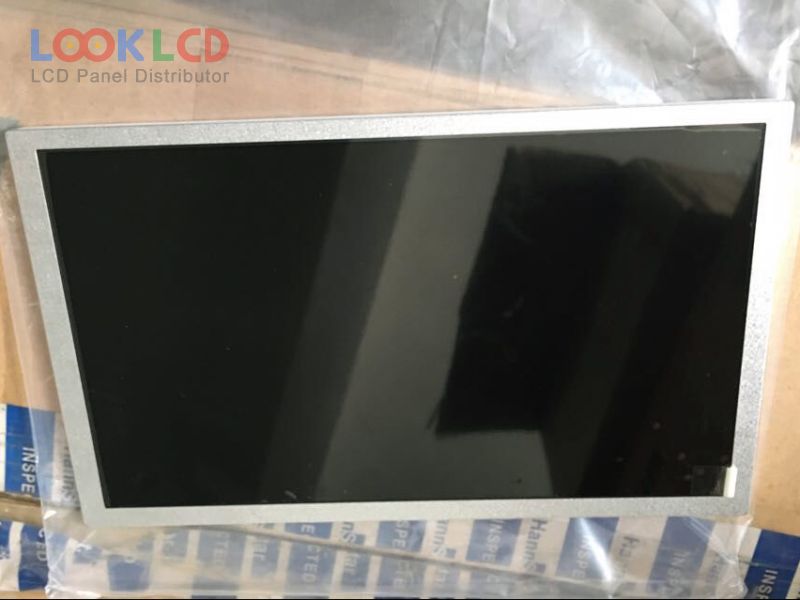

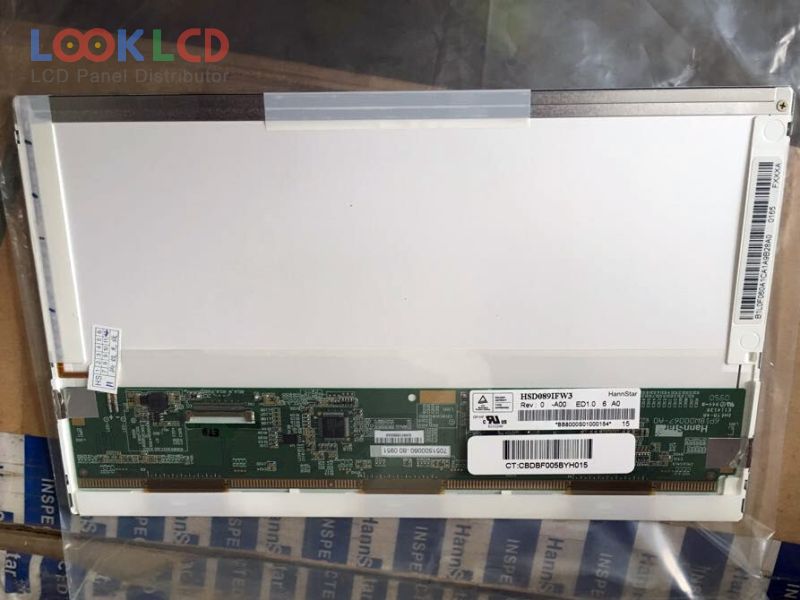

| PartNumber | HSD089IFW3-A00 |
| Marca | HannStar |
| mărimea | 8.9 |
| Aplicație | |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | HannStar |
| model de panou | HSD089IFW3-A00 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.9 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 195.072×113.4 mm |
| contur | 213.66×129.85 mm |
| suprafaţă | |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 12 (Typ.)(Tr+Td) |
| unghi de vedere | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | WLED |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| rohs: |
