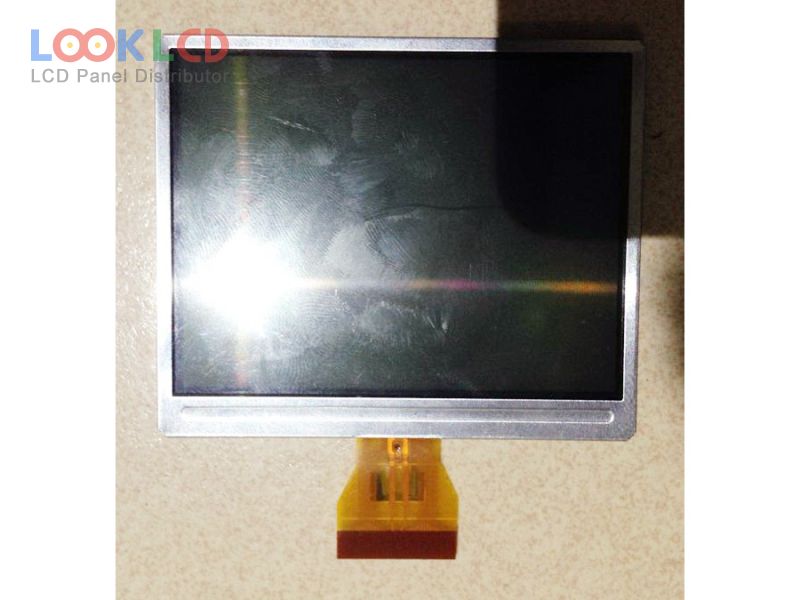

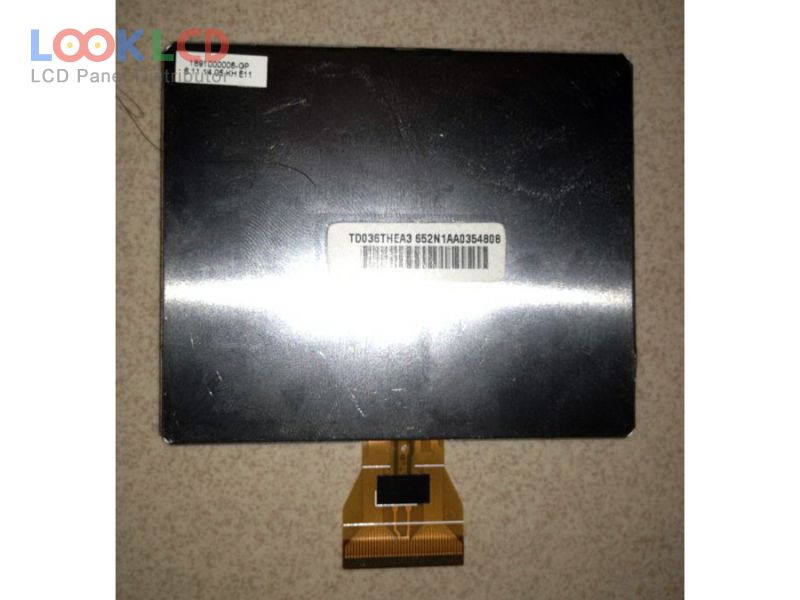

| PartNumber | TD036THEA3 |
| Marca | TPO |
| mărimea | 3.6 |
| Aplicație | |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 280 |
| CR | 400:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | Serial RGB |
| marca panoului | Toppoly |
| model de panou | TD036THEA3 |
| tip panou | LTPS TFT-LCD , LCM |
| dimensiunea panoului | 3.6 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 72.96×54.72 mm |
| contur | 80.2×66.3 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 280 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 13/22 (Typ.)(Tr/Td) |
| unghi de vedere | 50/20/40/40 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 3S2PWLED |
| interfață de semnal | Serial RGB (8-bit) + SPI, CCIR601, 40 pins |
| tensiune de intrare | 3.0V (Typ.)(VCC) |
| rohs: |
