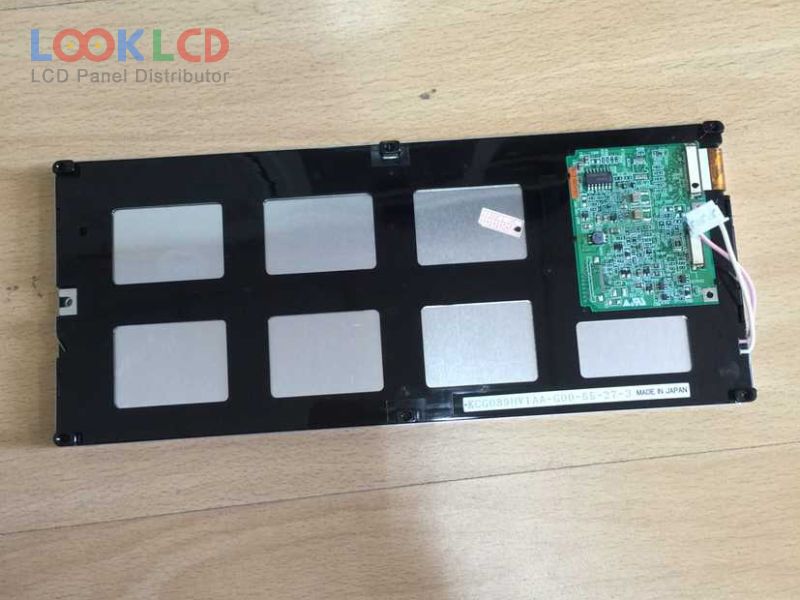

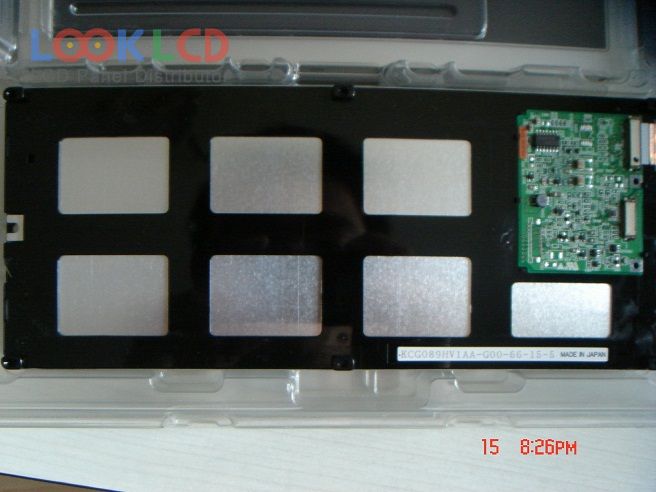

| PartNumber | KCG089HV1AA-G00 |
| Marca | Kyocera |
| mărimea | 8.9 |
| Aplicație | IA |
| Rezoluţie | 640×240 |
| Compoziţie | LCM |
| Luminozitate | 150 |
| CR | 30:1 |
| Culori | Color |
| Iluminare de fundal | CCFL |
| Interfață | Parallel Data |
| marca panoului | Kyocera |
| model de panou | KCG089HV1AA-G00 |
| tip panou | CSTN-LCD , LCM |
| dimensiunea panoului | 8.9 inch |
| rezoluţie | 640(RGB)×240 , HVGA |
| modul de afișare | STN, Normally Black, Transmissive |
| Zonă activă | 211.18×79.18 mm |
| contur | 246×103×12.2 mm |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 150 cd/m² (Typ.) |
| Raport de contrast | 30:1 (Typ.) |
| culorile afișajului | Color |
| timp de raspuns | 190/180 (Typ.)(Tr/Td) |
| unghi de vedere | 50/50/35/20 (Typ.)(CR≥2)(L/R/U/D) |
| frecvență | 75Hz |
| tip lampa | 1 pcsCCFLOptional |
| interfață de semnal | Parallel Data (8-bit), 20 pins |
| tensiune de intrare | 3.3/5.0V (Typ.)(VDD) |
| aplicarea | IA |
