| PartNumber | N089L6-L03 |
| Marca | Innolux |
| mărimea | 8.9 |
| Aplicație | NOPC |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CMO |
| model de panou | N089L6-L03 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.9 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 195.072×113.4 mm |
| contur | 213.36×129.55×4.9 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 3/7 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 7S3PWLEDEmbedded (LED Driver) |

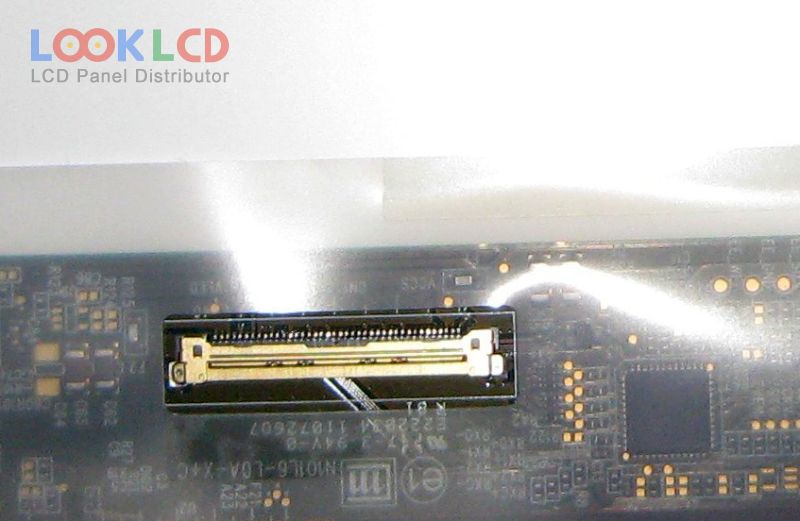

| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NOPC |
| A089SW01 V0 | AUO | 8.9 | 1024×600 |
| A089SW01 V1 | AUO | 8.9 | 1024×600 |
| HSD089IFW3-A00 | HannStar | 8.9 | 1024×600 |
| HV089WX1-100 | HYDIS | 8.9 | 1280×768 |
| LJ640U35 | SHARP | 8.9 | 640×400 |
| LSUGC202XA | ALPS | 8.9 | 640×240 |
| LTL089CL02-W02 | Samsung | 8.9 | 1920×1200 |
| N089L6-L02 | Innolux | 8.9 | 1024×600 |
| N089L6-L03 | Innolux | 8.9 | 1024×600 |
| TFTMD089030 | JDI | 8.9 | 2560×1600 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| LP116WH1-TLN1 | LG Display | 11.6 | 1366×768 |
| LP116WH2-TLN1 | LG Display | 11.6 | 1366×768 |
| LS075AT011 | Innolux | 7.5 | 1200×900 |
| LTN101NT06-W03 | Samsung | 10.1 | 1024×600 |
| N089A1-L01 | Innolux | 8.9 | 1280×768 |
| N089L6-L03 | Innolux | 8.9 | 1024×600 |
| N101LGE-L11 | Innolux | 10.1 | 1024×600 |
| N116B6-L07 | Innolux | 11.6 | 1366×768 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
