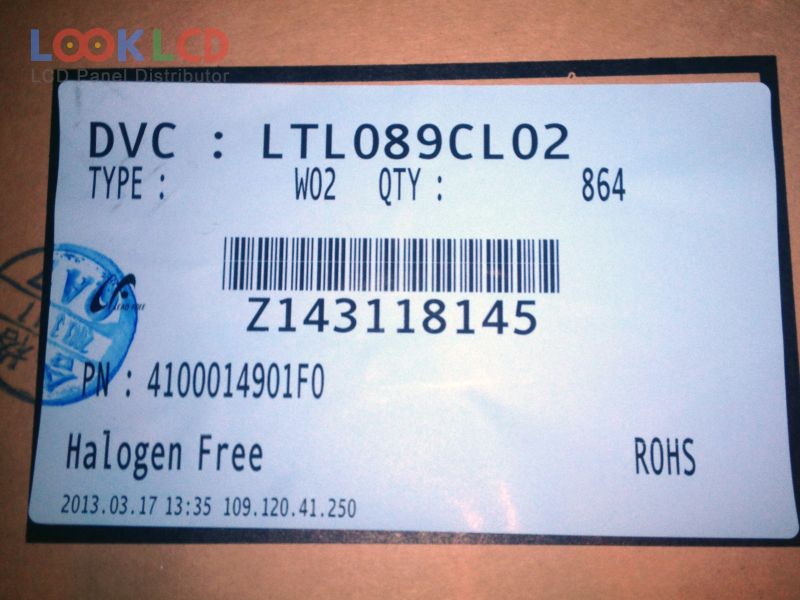

| PartNumber | LTL089CL02-W02 |
| Marca | Samsung |
| mărimea | 8.9 |
| Aplicație | PAD |
| Rezoluţie | 1920×1200 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 900:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | SAMSUNG |
| model de panou | LTL089CL02-W02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.9 inch |
| rezoluţie | 1920(RGB)×1200 , WUXGA |
| modul de afișare | PLS, Normally Black, Transmissive |
| Zonă activă | 191.52×119.7 mm |
| contur | 203.5×135.9×5.2 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (2H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 7S5PWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 45 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
| HT089WX1-100 | HYDIS | 8.9 | 1280×768 |
| LP089WS1-TLA1 | LG Display | 8.9 | 1024×600 |
| LSUGC202XA | ALPS | 8.9 | 640×240 |
| LTD089EXWS | TOSHIBA | 8.9 | 1280×768 |
| LTL089CL02-001 | Samsung | 8.9 | 1920×1200 |
| LTL089CL02-002 | Samsung | 8.9 | 1920×1200 |
| LTL089CL02-W02 | Samsung | 8.9 | 1920×1200 |
| LTM09C362 | TOSHIBA | 8.9 | 1024×600 |
| LTM09C362F | TOSHIBA | 8.9 | 1024×600 |
| VVX09F035M20 | Panasonic | 8.9 | 1920×1200 |
| B101XAN02.0 | AUO | 10.1 | 1366×768 |
| HSD101PWW1-B00-C11 | HannStar | 10.1 | 1280×800 |
| HV121WX6-110 | HYDIS | 12.1 | 1280×800 |
| LD070WX4-SM01 | LG Display | 7.0 | 800×1280 |
| LD083WU1-SPA3 | LG Display | 8.3 | 1200×1920 |
| LP079X01-SMA7 | LG Display | 7.9 | 768×1024 |
| LP101WH4-SLA3 | LG Display | 10.1 | 1366×768 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
| N101ICG-L21 Rev.A1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.B1 | Innolux | 10.1 | 1280×800 |
