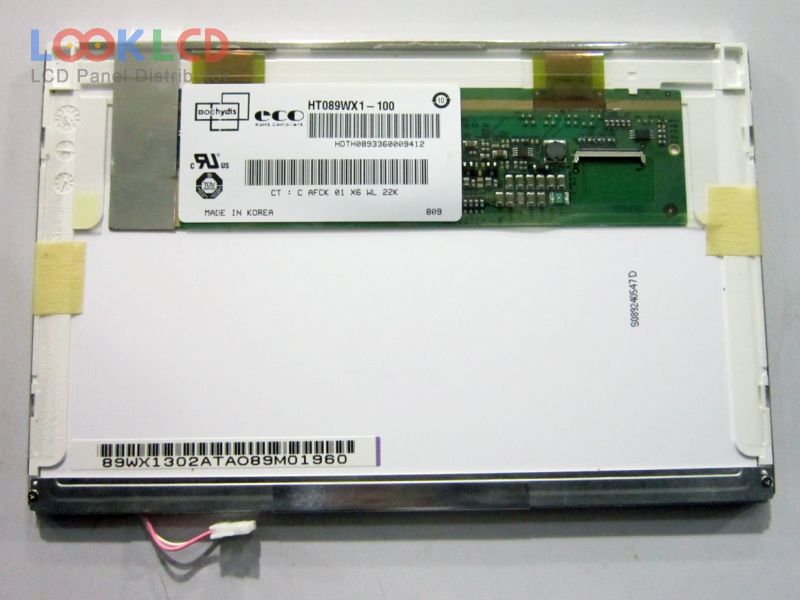

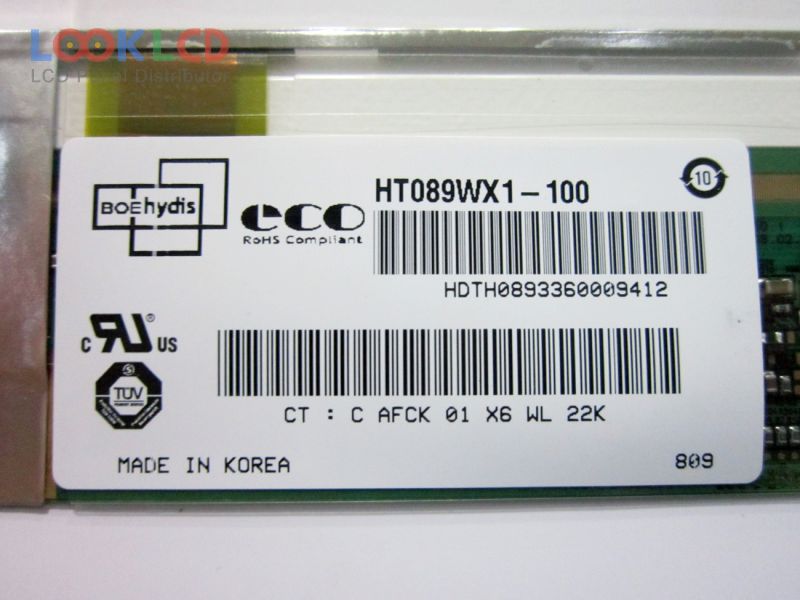

| PartNumber | HT089WX1-100 |
| Marca | HYDIS |
| mărimea | 8.9 |
| Aplicație | NOPC |
| Rezoluţie | 1280×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | BOE HYDIS |
| model de panou | HT089WX1-100 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.9 inch |
| rezoluţie | 1280(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 193.92×116.352 mm |
| contur | 206×133×5.7 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NOPC |
