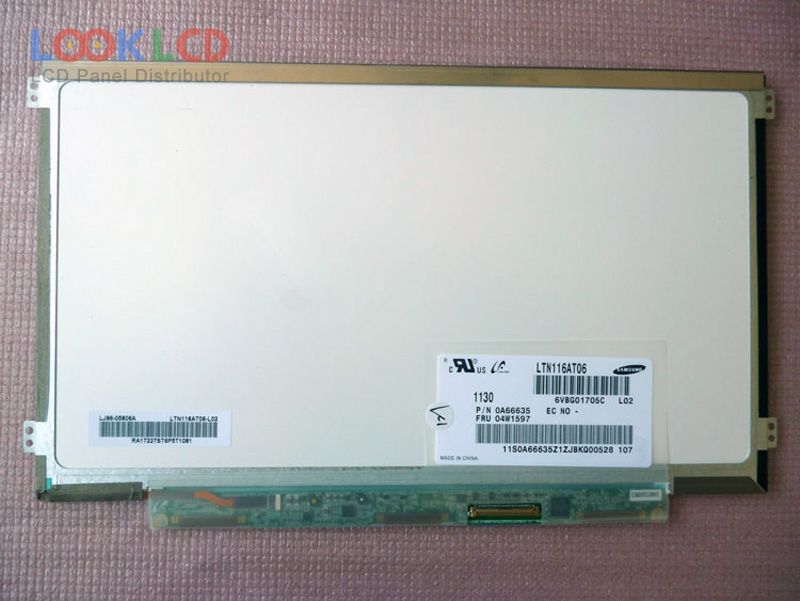

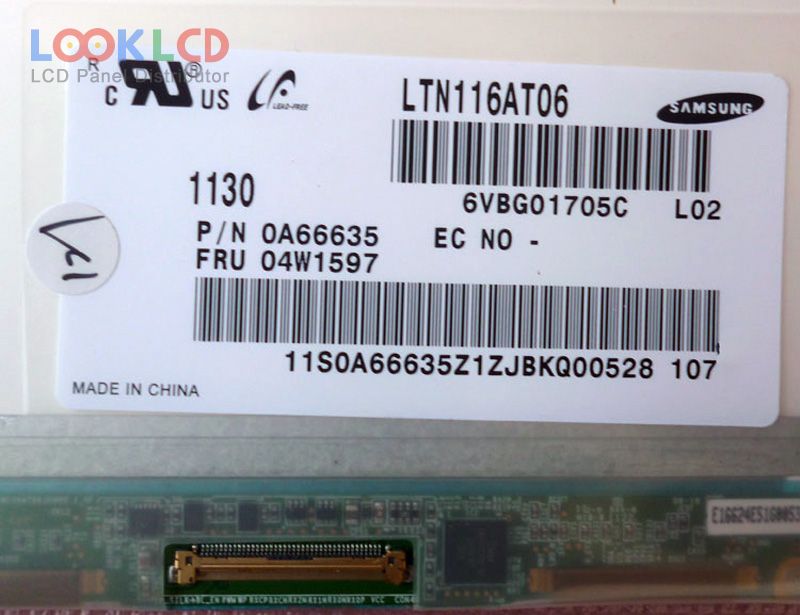

| PartNumber | LTN116AT06-L02 |
| Marca | Samsung |
| mărimea | 11.6 |
| Aplicație | NOPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTN116AT06-L02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 11.6 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 256.125×144 mm |
| contur | 268×168×3.6 mm |
| stilul formei | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |

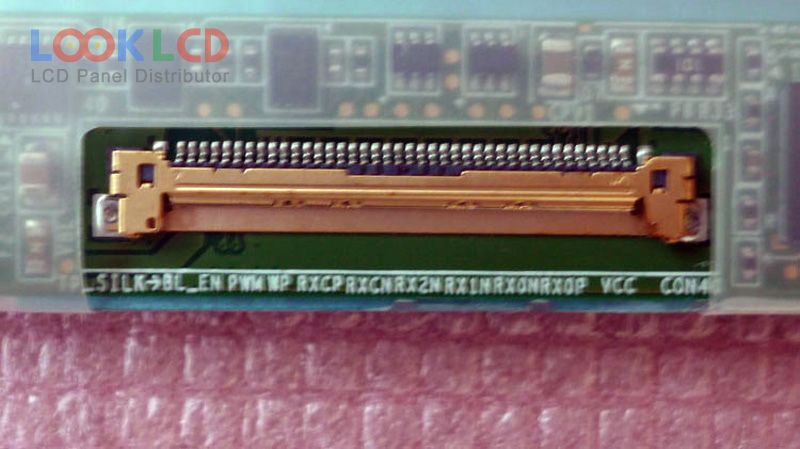

| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NOPC |
| LP116WH2-TLN1 | LG Display | 11.6 | 1366×768 |
| LTN116AT01-401 | Samsung | 11.6 | 1366×768 |
| LTN116AT01-801 | Samsung | 11.6 | 1366×768 |
| LTN116AT01-A01 | Samsung | 11.6 | 1366×768 |
| LTN116AT02-D01 | Samsung | 11.6 | 1366×768 |
| LTN116AT06-L02 | Samsung | 11.6 | 1366×768 |
| LTN116AT07-B01 | Samsung | 11.6 | 1366×768 |
| M116NWR1 R3 | IVO | 11.6 | 1366×768 |
| N116BGE-L41 | Innolux | 11.6 | 1366×768 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
| A089SW01 V1 | AUO | 8.9 | 1024×600 |
| B089AW01 V0 | AUO | 8.9 | 1024×600 |
| B101AW01 V2 HW5A | AUO | 10.1 | 1024×576 |
| B116XTN02.3 HW0A | AUO | 11.6 | 1366×768 |
| B116XW05 V004 | AUO | 11.6 | 1366×768 |
| BT101IW01 V.0 | Innolux | 10.1 | 1024×600 |
| LTN101NT02-B01 | Samsung | 10.1 | 1024×600 |
| LTN101NT02-L01 | Samsung | 10.1 | 1024×600 |
| N101L6-L0B | Innolux | 10.1 | 1024×600 |
| N101L6-L0C | Innolux | 10.1 | 1024×600 |
