| PartNumber | LTN116AT01-801 |
| Marca | Samsung |
| mărimea | 11.6 |
| Aplicație | NOPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTN116AT01-801 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 11.6 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 256.125×144 mm |
| contur | 268×161.5×5.2 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 15 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 9S4PWLEDEmbedded (LED Driver) |

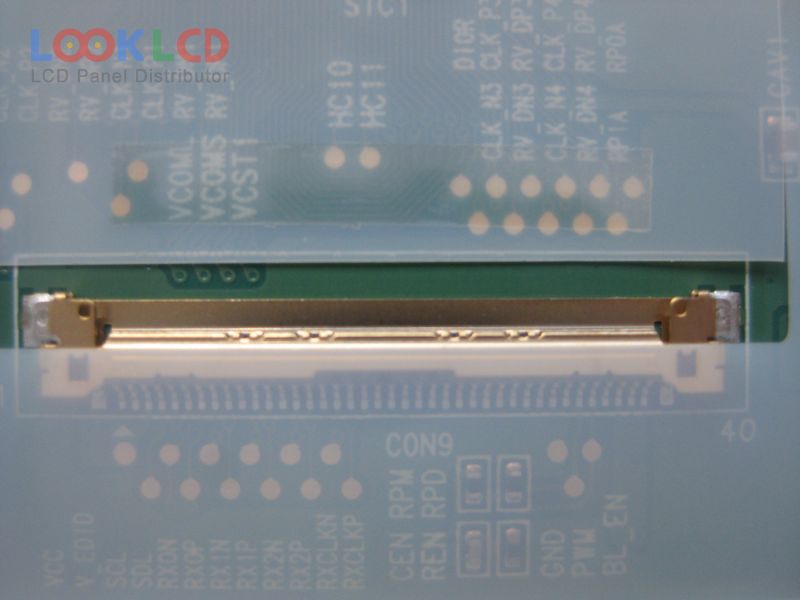

| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NOPC |
| B116XTB01.0 | AUO | 11.6 | 1366×768 |
| B116XW05 V001 | AUO | 11.6 | 1366×768 |
| LP116WH1-TLA1 | LG Display | 11.6 | 1366×768 |
| LP116WH2-TLN1 | LG Display | 11.6 | 1366×768 |
| LTN116AT01-401 | Samsung | 11.6 | 1366×768 |
| LTN116AT01-801 | Samsung | 11.6 | 1366×768 |
| LTN116AT01-A01 | Samsung | 11.6 | 1366×768 |
| LTN116AT02-D01 | Samsung | 11.6 | 1366×768 |
| LTN116AT06-L02 | Samsung | 11.6 | 1366×768 |
| LTN116AT07-B01 | Samsung | 11.6 | 1366×768 |
| A089SW01 V0 | AUO | 8.9 | 1024×600 |
| B101AW02 V0 | AUO | 10.1 | 1024×600 |
| B101AW06 V1 HW1A | AUO | 10.1 | 1024×600 |
| B116XTN02.3 HW0A | AUO | 11.6 | 1366×768 |
| CLAA090NA02CW | CPT | 9.0 | 1024×600 |
| LP089WS2-TLB1 | LG Display | 8.9 | 1024×600 |
| LP101WSA-TLN1 | LG Display | 10.1 | 1024×600 |
| LTN116AT01-A01 | Samsung | 11.6 | 1366×768 |
| LTN116AT06-L02 | Samsung | 11.6 | 1366×768 |
| N089L6-L03 | Innolux | 8.9 | 1024×600 |
