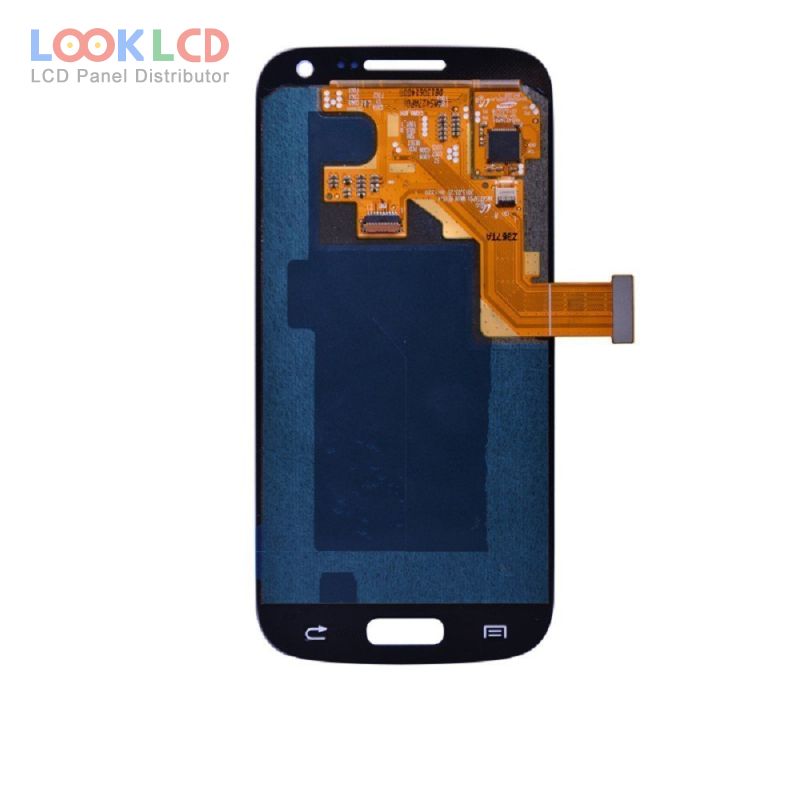

| PartNumber | AMS427GL45-0 |
| Marca | Samsung |
| mărimea | 4.3 |
| Aplicație | MPH |
| Rezoluţie | 480×800 |
| Compoziţie | Assembly |
| Luminozitate | 300 |
| CR | 10000:1 |
| Culori | 16.7M |
| Iluminare de fundal | self |
| Interfață | TTL |
| marca panoului | SAMSUNG SMD |
| model de panou | AMS427GL45-0 |
| tip panou | AM-OLED , Assembly |
| dimensiunea panoului | 4.3 inch |
| rezoluţie | 480(RGB)×800 , WVGA |
| Zonă activă | 55.8×93 mm |
| contur | 62.68×121.93 mm |
| suprafaţă | Hard coating |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 10000 : 1 (Min.) |
| culorile afișajului | 16.7M (8-bit), CIE1931106% |
| unghi de vedere | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins |
| tensiune de intrare | 1.8/3.0/3.8V (Typ.)(VDD3/VCI/VBAT) |
| aplicarea | MPH |
