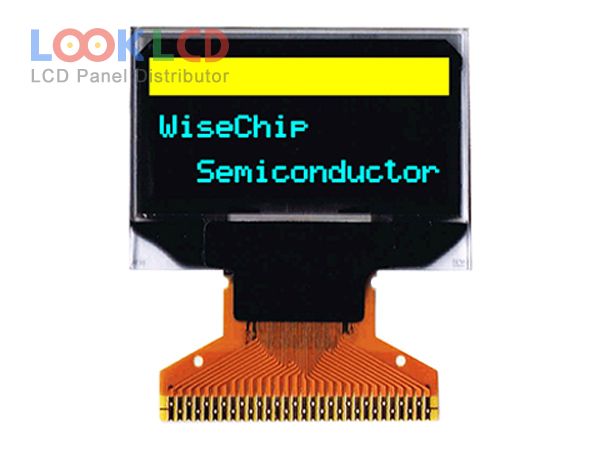

| PartNumber | UG-2864HMBEG01 |
| Marca | WiseChip |
| mărimea | 0.96 |
| Aplicație | IA |
| Rezoluţie | 128×64 |
| Compoziţie | OLED |
| Luminozitate | 120 |
| CR | 2000:1 |
| Culori | Area(BY) |
| Iluminare de fundal | self |
| Interfață | CPU/SPI/I²C |
| marca panoului | Univision |
| model de panou | UG-2864HMBEG01 |
| tip panou | PM-OLED , OLED |
| dimensiunea panoului | 0.96 inch |
| rezoluţie | 128×64 |
| Zonă activă | 21.744×11.204 mm |
| contur | 26.7×19.26×1.55 mm |
| suprafaţă | |
| luminozitatea | 120 cd/m² (Typ.) |
| Raport de contrast | 2000 : 1 (Typ.) |
| culorile afișajului | Area(BY) |
| unghi de vedere | 80/80/80/80 (Min.)(L/R/U/D) |
| driver ic | COG Built-in SSD1306 |
| interfață de semnal | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| tensiune de intrare | 2.8/9V (Typ.)(VDD/VCC) |
| rohs: | |
| aplicarea | IA |
