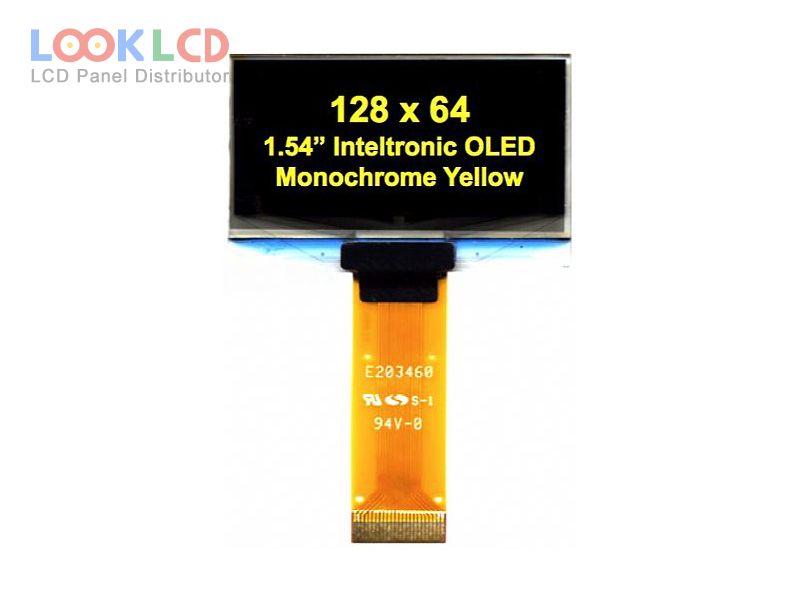

| PartNumber | UG-2864ASYCG01 |
| Marca | WiseChip |
| mărimea | 1.54 |
| Aplicație | IA |
| Rezoluţie | 128×64 |
| Compoziţie | OLED |
| Luminozitate | 150 |
| CR | 10000:1 |
| Culori | Mono(Yellow) |
| Iluminare de fundal | self |
| Interfață | CPU/SPI/I²C |
| marca panoului | WiseChip |
| model de panou | UG-2864ASYCG01 |
| tip panou | PM-OLED , OLED |
| dimensiunea panoului | 1.54 inch |
| rezoluţie | 128×64 |
| Zonă activă | 35.056×17.52 mm |
| contur | 45.24×29.14×2.1 mm |
| suprafaţă | |
| luminozitatea | 150 cd/m² (Typ.) |
| Raport de contrast | 10000 : 1 (Typ.) |
| culorile afișajului | Mono(Yellow) (1-bit) |
| unghi de vedere | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| driver ic | COG Built-in SSD1305 |
| interfață de semnal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 24 pins |
| tensiune de intrare | 2.8/12.5V (Typ.)(VDD/VCC) |
| rohs: | |
| aplicarea | IA |
