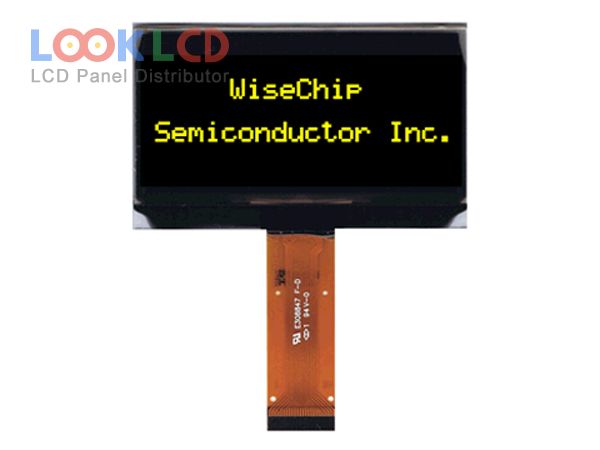

| PartNumber | UG-2864ASYPG01 |
| Marca | WiseChip |
| mărimea | 2.4 |
| Aplicație | IA |
| Rezoluţie | 128×64 |
| Compoziţie | OLED |
| Luminozitate | 80 |
| CR | |
| Culori | Mono(Yellow) |
| Iluminare de fundal | self |
| Interfață | CPU/SPI/I²C |
| marca panoului | WiseChip |
| model de panou | UG-2864ASYPG01 |
| tip panou | PM-OLED , OLED |
| dimensiunea panoului | 2.4 inch |
| rezoluţie | 128×64 |
| Zonă activă | 55.01×27.49 mm |
| contur | 60.5×37 mm |
| suprafaţă | |
| luminozitatea | 80 cd/m² (Typ.) |
| Raport de contrast | |
| culorile afișajului | Mono(Yellow) |
| unghi de vedere | |
| driver ic | Built-in SSD1309 |
| interfață de semnal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| aplicarea | IA |
