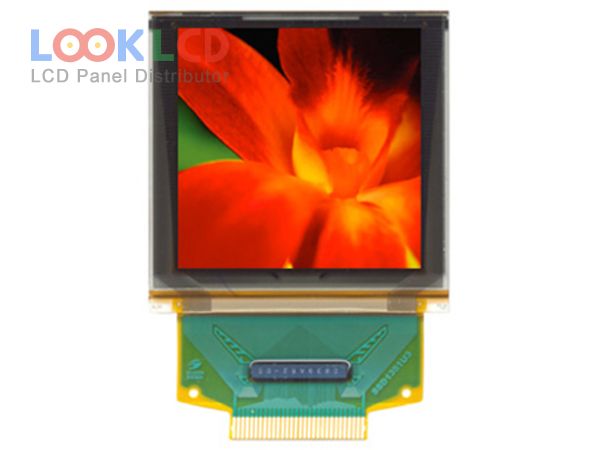

| PartNumber | UG-2828GDEDF11 |
| Marca | WiseChip |
| mărimea | 1.5 |
| Aplicație | MPH |
| Rezoluţie | 128×128 |
| Compoziţie | OLED |
| Luminozitate | 90 |
| CR | 10000:1 |
| Culori | 262K |
| Iluminare de fundal | self |
| Interfață | CPU/SPI |
| marca panoului | Univision |
| model de panou | UG-2828GDEDF11 |
| tip panou | PM-OLED , OLED |
| dimensiunea panoului | 1.5 inch |
| rezoluţie | 128(RGB)×128 |
| Zonă activă | 26.855×26.864 mm |
| contur | 33.8×34×1.7 mm |
| suprafaţă | Antiglare |
| luminozitatea | 90 cd/m² (Typ.) |
| Raport de contrast | 10000 : 1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193163% |
| unghi de vedere | 80/80/80/80 (Min.)(L/R/U/D) |
| driver ic | COF Built-in SSD1351 |
| interfață de semnal | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| tensiune de intrare | 2.8/2.5/1.8/13V (Typ.)(VCI/VDD/VDDIO/VCC) |
| aplicarea | MPH |
