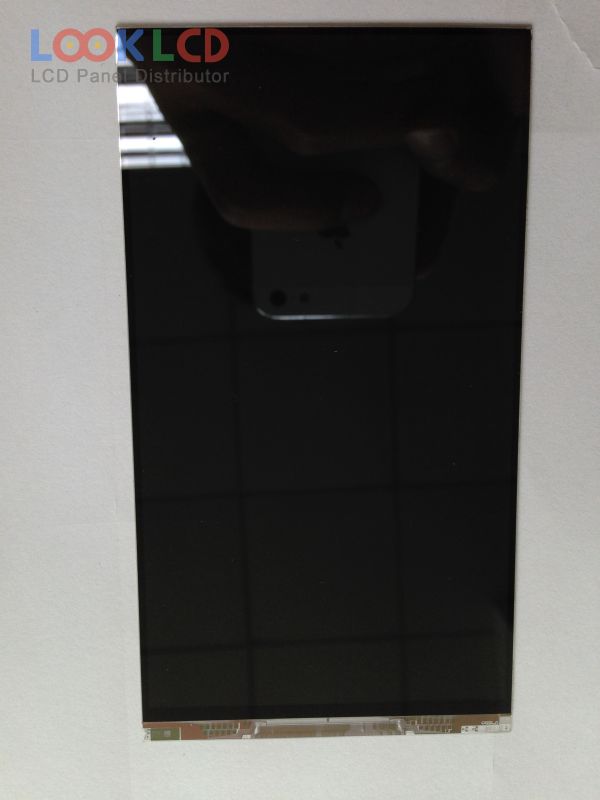

PartNumber | CLAF055LA41 TXX |
Marca | CPT |
mărimea | 5.5 |
Aplicație | MPH |
Rezoluţie | 540×960 |
Compoziţie | CELL |
Luminozitate | 0 |
CR | 800:1 |
Culori | |
Iluminare de fundal | No B/L |
Interfață | |
marca panoului | CPT |
model de panou | CLAF055LA41 TXX 7 Compatible model |
tip panou | a-Si TFT-LCD , CELL |
dimensiunea panoului | 5.5 inch |
rezoluţie | 540(RGB)×960 , qHD |
modul de afișare | FFS, Normally Black, Transmissive |
Zonă activă | 68.04×120.96 mm |
contur | 70.84×128.96 mm |
suprafaţă | Without Polarizer |
adâncimea sticlei | 0.20+0.20 mm |
transmisivitatea | 5.2% (Typ.)(with APCF) |
Raport de contrast | 800:1 (Typ.) |
culorile afișajului | , CIE193170% |
timp de raspuns | 30 (Typ.)(Tr+Td) |
unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
driver ic | COG Suggest ILI9807, NT35517, OTM9605A-C32 |
aplicarea | MPH |
