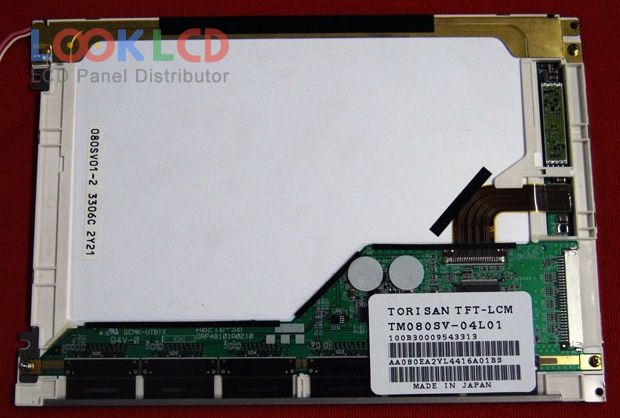

| PartNumber | TM080SV-04L01 |
| Marca | SANYO |
| mărimea | 8.0 |
| Aplicație | DPF |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 150 |
| CR | 250:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | TORISAN |
| model de panou | TM080SV-04L01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.0 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 163.2×122.4 mm |
| contur | 201.4×140.3 mm |
| suprafaţă | Antiglare |
| luminozitatea | 150 cd/m² (Typ.) |
| Raport de contrast | 250:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193152% |
| timp de raspuns | 35/15 (Typ.)(Tr/Td) |
| unghi de vedere | 40/40/30/10 (Min.)(CR≥10)(L/R/U/D) |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | DPF |
