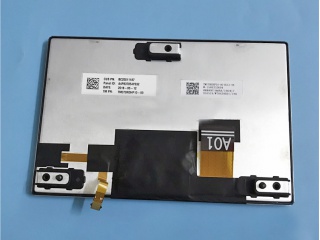

| PartNumber | TM070RDHP10-00 |
| Marca | TIANMA |
| mărimea | 7.0 |
| Aplicație | Automotive Display |
| Rezoluţie | 800×480 |
| Compoziţie | a-Si TFT-LCD, LCM |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | Parallel |
| marca | TIANMA |
| model | TM070RDHP10-00 |
| dimensiunea diagonalei | 7.0 inch |
| tip | a-Si TFT-LCD, LCM |
| format de pixeli | 800(RGB)×480 [WVGA] 133PPI |
| configurație | RGB Vertical Stripe |
| Zonă activă | 152.4(H)×91.44(V) mm |
| contur dim. | 165.1(H)×108.44(V) ×13(D) mm |
| zona rama | 155.4(H)×94.44(V) mm |
| tratament | Antiglare, Hard coating (3H) |
| luminanţă | 1000 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) (TM) |
| direcția vizualizării | Symmetry |
| timp de raspuns | 35 (Max.)(Tr+Td) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥10) |
| mod de operare | SFT, Normally Black, Transmissive |
| culoare suport | 16.7M 71% NTSC |
| sursă de lumină | WLED [8S2P] , 10K hours , W/O Driver |
| greutate | 180g (Max.) |
| proiectat pentru | Automotive Display |
| rata de cadre | 60Hz |
| panou tactil | Without |
| tipul de interfață | Parallel RGB (1 ch, 6/8-bit) , 40 pins FPC |
| alimentare electrică | 3.3V (Typ.) |
| mediu inconjurator | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -45 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
