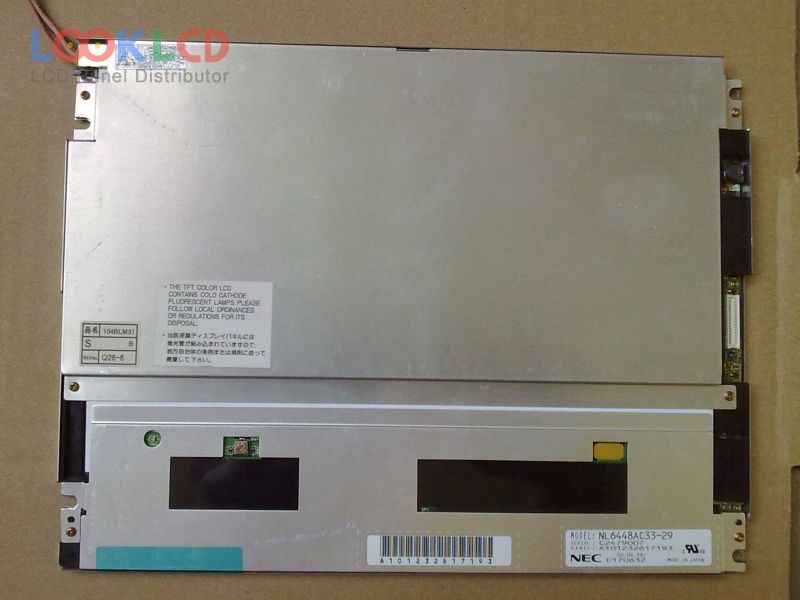

| PartNumber | NL6448AC33-29 |
| Marca | NLT |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 640×480 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 150:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | NEC |
| model de panou | NL6448AC33-29 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 640(RGB)×480 , VGA |
| modul de afișare | SFT, Normally Black, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| contur | 243×185.1×11.2 mm |
| suprafaţă | Clear, Antireflection |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 150:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 50/50 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLEmbedded (Inverter) |
| interfață de semnal | CMOS (1 ch, 6-bit), 31 pins |
| tensiune de intrare | 3.3/5.0V (Typ.)(VCC) |
| aplicarea | IA |
