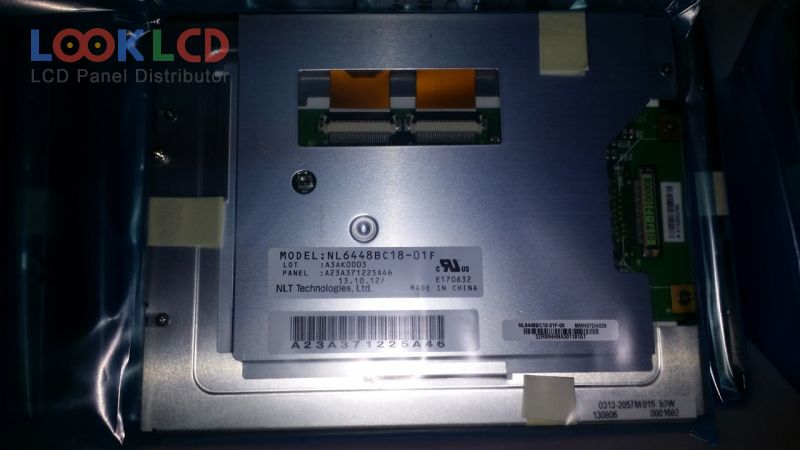

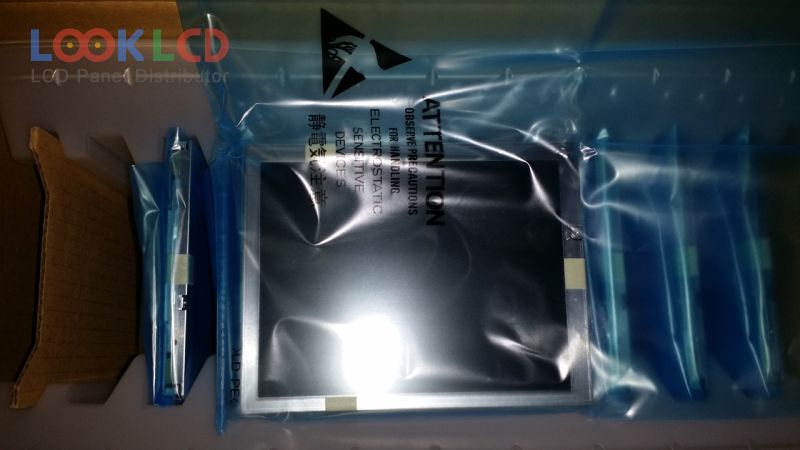

| PartNumber | NL6448BC18-01F |
| Marca | NLT |
| mărimea | 5.7 |
| Aplicație | IA |
| Rezoluţie | 640×480 |
| Compoziţie | LCM |
| Luminozitate | 800 |
| CR | 850:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | NEC |
| model de panou | NL6448BC18-01F 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.7 inch |
| rezoluţie | 640(RGB)×480 , VGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 116.16×87.12 mm |
| contur | 135×104.6×10.9 mm |
| suprafaţă | Clear, Hard coating (3H) |
| luminozitatea | 800 cd/m² (Typ.) |
| Raport de contrast | 850:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193160% |
| timp de raspuns | 3/15 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 9S2P×2CNWLEDWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 33 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
