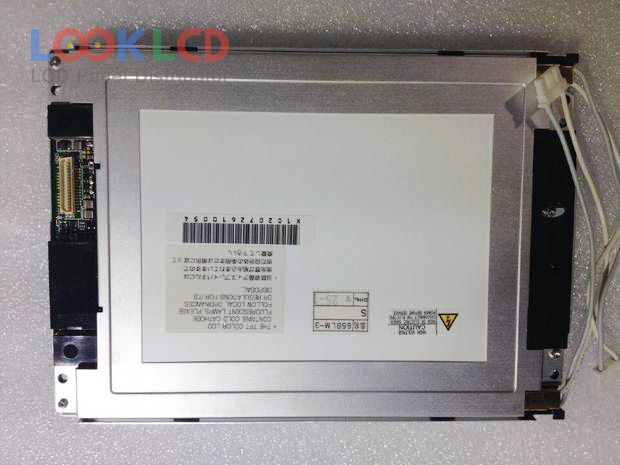

| PartNumber | NL6448AC20-06 |
| Marca | NLT |
| mărimea | 6.5 |
| Aplicație | IA |
| Rezoluţie | 640×480 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 150:1 |
| Culori | 4096/262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | NEC |
| model de panou | NL6448AC20-06 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 6.5 inch |
| rezoluţie | 640(RGB)×480 , VGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 132.48×99.36 mm |
| contur | 178.8×126.8 mm |
| suprafaţă | |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 150:1 (Typ.) |
| culorile afișajului | 4096/262K (4-bit / 6-bit), CIE193145% |
| timp de raspuns | 40 (Typ.)(Tr) |
| unghi de vedere | 50/50/35/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLEmbedded (Inverter) |
| interfață de semnal | CMOS (1 ch, 4/6-bit), 31 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | IA |
