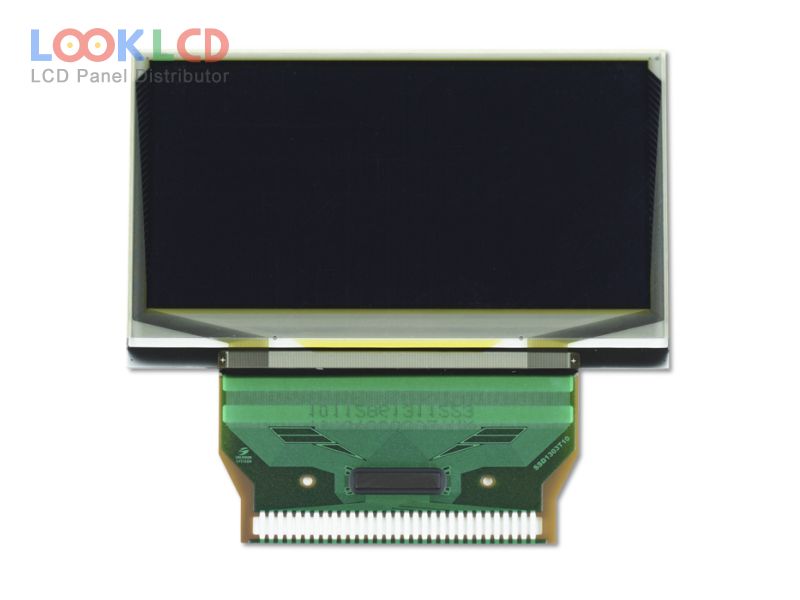

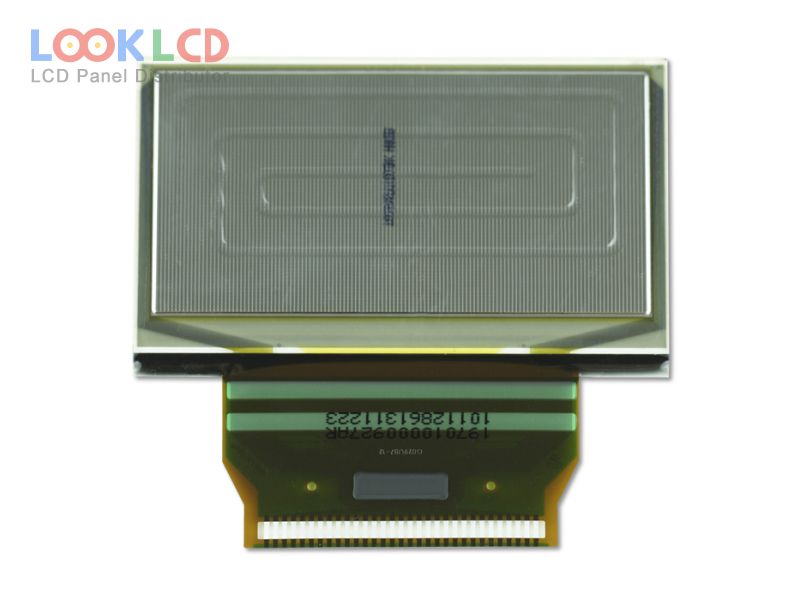

| PartNumber | RGS24128064YW004 |
| Marca | RiTdisplay |
| mărimea | 2.4 |
| Aplicație | IA |
| Rezoluţie | 128×64 |
| Compoziţie | OLED |
| Luminozitate | 80 |
| CR | 2000:1 |
| Culori | Mono(Yellow) |
| Iluminare de fundal | self |
| Interfață | CPU/SPI/I²C |
| marca panoului | RiTdisplay |
| model de panou | RGS24128064YW004 |
| tip panou | PM-OLED , OLED |
| dimensiunea panoului | 2.4 inch |
| rezoluţie | 128×64 |
| Zonă activă | 55.01×27.49 mm |
| contur | 60.5×37×2.11 mm |
| suprafaţă | Antiglare |
| luminozitatea | 80 cd/m² (Typ.) |
| Raport de contrast | 2000 : 1 (Min.) |
| culorile afișajului | Mono(Yellow) (1-bit) |
| unghi de vedere | 80/80/80/80 (Min.)(L/R/U/D) |
| frecvență | 105Hz |
| driver ic | TAB Built-in SSD1303 |
| interfață de semnal | 8-bit 6800/8080 parallel, SPI, I²C, 31 pins |
| tensiune de intrare | 13.0/2.7V (Typ.)(VCC/VDD) |
| aplicarea | IA |
