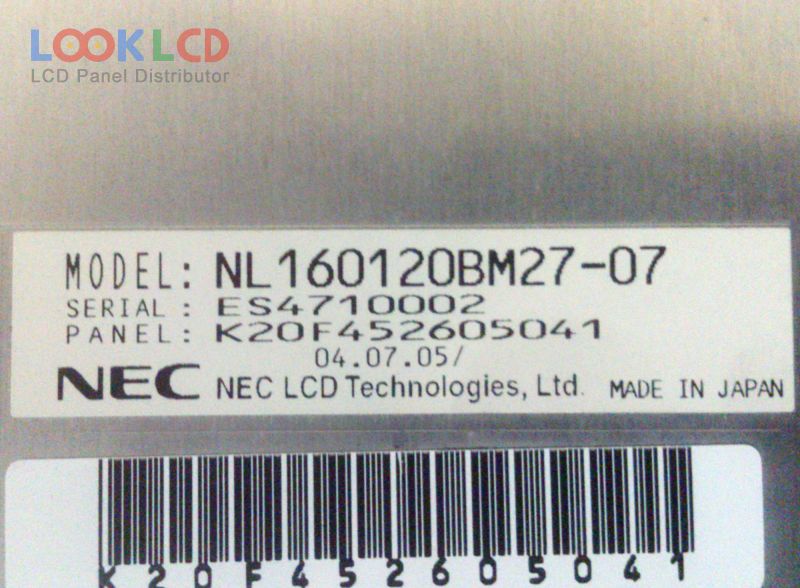

| PartNumber | NL160120BM27-07 |
| Marca | NLT |
| mărimea | 21.3 |
| Aplicație | MD |
| Rezoluţie | 1600×1200 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | 700:1 |
| Culori | Grayscale |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | NEC |
| model de panou | NL160120BM27-07 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 21.3 inch |
| rezoluţie | 1600(LCR)×1200 , UXGA |
| modul de afișare | SA-SFT, Normally Black, Transmissive |
| Zonă activă | 432×324 mm |
| suprafaţă | Antiglare, Hard coating (2H) |
| luminozitatea | |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | Grayscale (8-bit) |
| timp de raspuns | 17/18 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | CCFL |
| interfață de semnal | LVDS (2 ch, 8-bit) |
| tensiune de intrare | 12.0V (Typ.) |
| rohs: | |
| aplicarea | MD |
