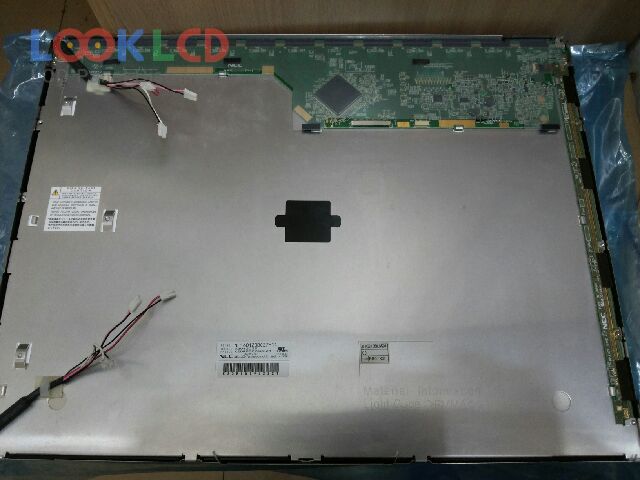

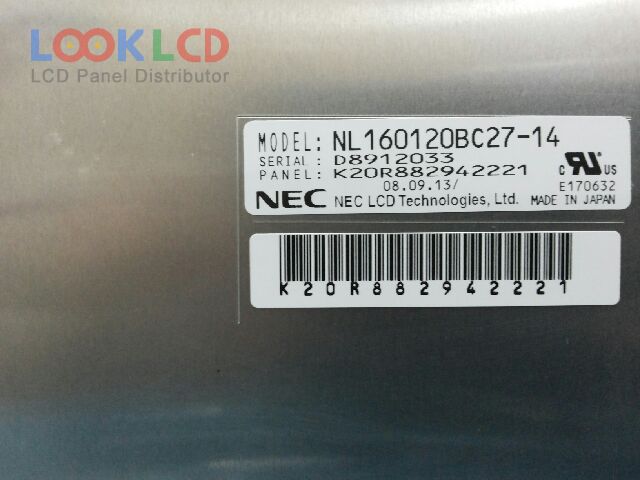

| PartNumber | NL160120BC27-14 |
| Marca | NLT |
| mărimea | 21.3 |
| Aplicație | DMPC |
| Rezoluţie | 1600×1200 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 550:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | NEC |
| model de panou | NL160120BC27-14 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 21.3 inch |
| rezoluţie | 1600(RGB)×1200 , UXGA |
| modul de afișare | SA-SFT, Normally Black, Transmissive |
| Zonă activă | 432×324 mm |
| contur | 457×350 mm |
| suprafaţă | Antiglare, Hard coating (2H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 550:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 11/9 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 40 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | DMPC |
