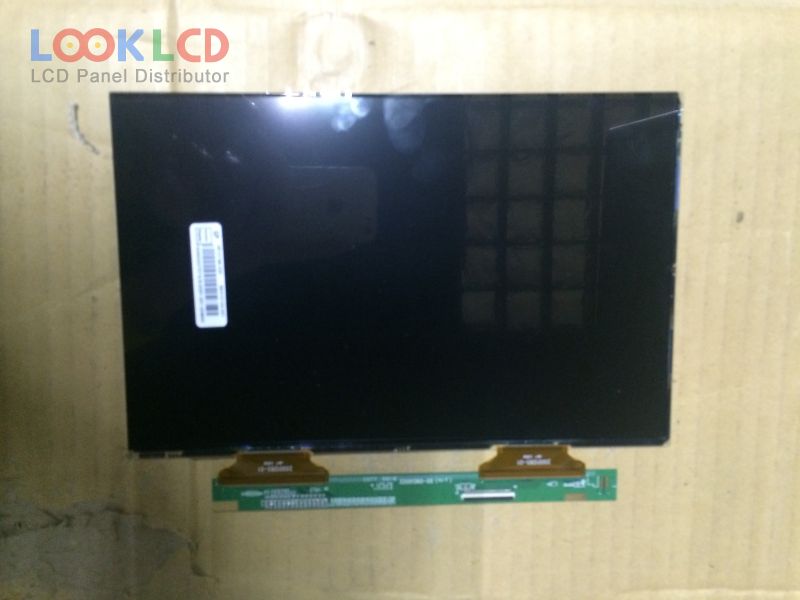

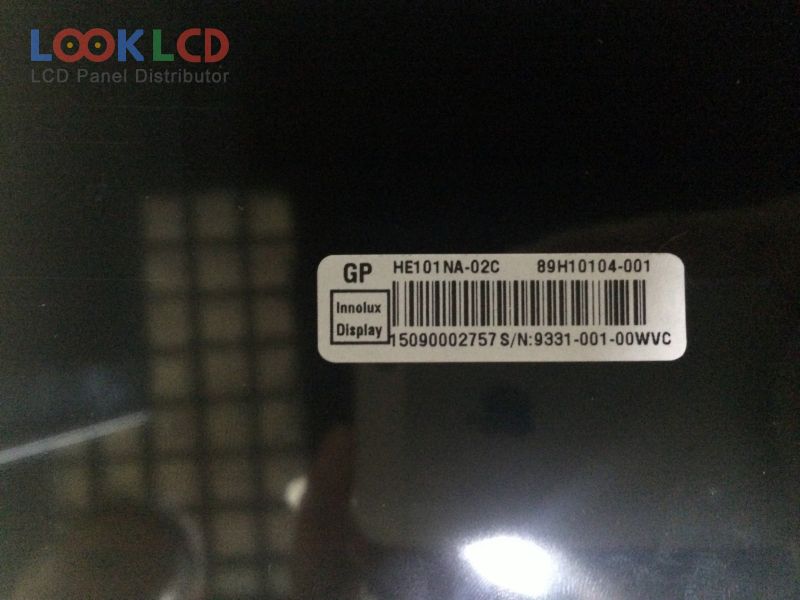

| PartNumber | HE101NA-02C |
| Marca | Innolux |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1280×800 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 700:1 |
| Culori | 16.7M |
| Iluminare de fundal | No B/L |
| Interfață | TTL |
| marca panoului | CHIMEI INNOLUX |
| model de panou | HE101NA-02C |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 216.96×135.6 mm |
| contur | 224.21×145×1.43 mm |
| suprafaţă | Glare (Haze 0%) |
| adâncimea sticlei | 0.50+0.50 mm |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 10/20 (Typ.)(Tr/Td) |
| unghi de vedere | 75/70/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | PAD |
