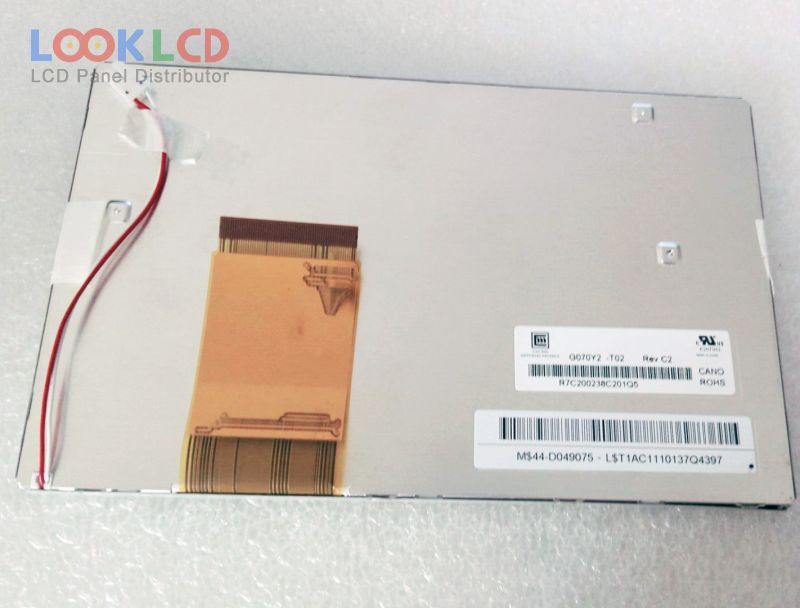

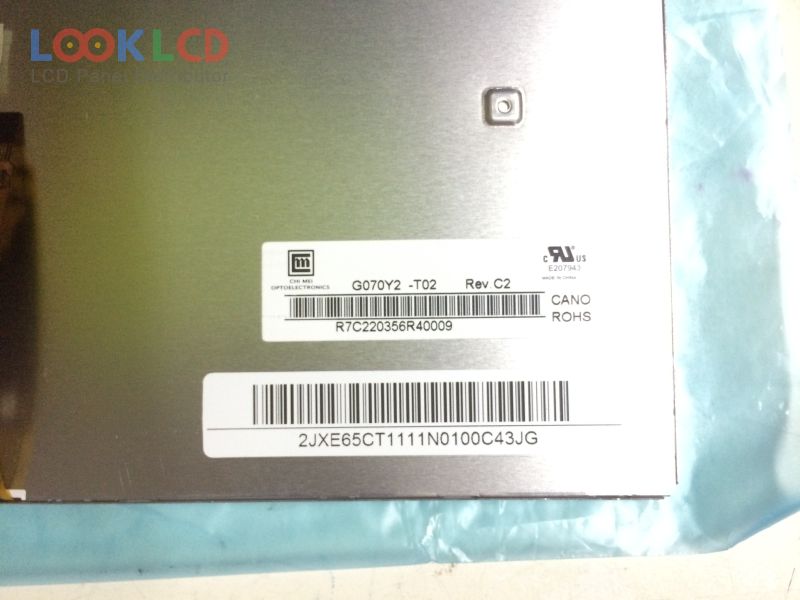

| PartNumber | G070Y2-T02 |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 600:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | CMO |
| model de panou | G070Y2-T02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 165×104×6.83 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + FRC), CIE193172% |
| timp de raspuns | 5/11 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 7S2PWLEDWithout Driver |
| interfață de semnal | TTL (1 ch, 6/8-bit), 60 pins |
| tensiune de intrare | 3.3/10/19/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | CNS |
| BA070WS1-100 | BOE | 7.0 | 1024×600 |
| BP070WSA-400 | BOE | 7.0 | 1024×600 |
| G070Y1-T01 | Innolux | 7.0 | 800×480 |
| G070Y2-L01 | Innolux | 7.0 | 800×480 |
| G070Y2-T02 | Innolux | 7.0 | 800×480 |
| G070Y3-T01 | Innolux | 7.0 | 800×480 |
| LB070WQ7-TD02 | LG Display | 7.0 | 480×234 |
| LD070WS2-SL02 | LG Display | 7.0 | 1024×600 |
| LTN070NL01-801 | Samsung | 7.0 | 1024×600 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
| C070VW04 V7 | AUO | 7.0 | 800×480 |
| CLAA101ND06CW | CPT | 10.1 | 1024×600 |
| HSD050I9W1-A00 | HannStar | 5.0 | 480×272 |
| LB080WV4-TD02 | LG Display | 8.0 | 800×480 |
| LQ058T5BA01 | SHARP | 5.8 | |
| LQ065T5GG63 | SHARP | 6.5 | 400×234 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TX31D16VM2BAA | KOE | 12.2 | 1024×310 |
| ZJ070NA-01P | Innolux | 7.0 | 1024×600 |
