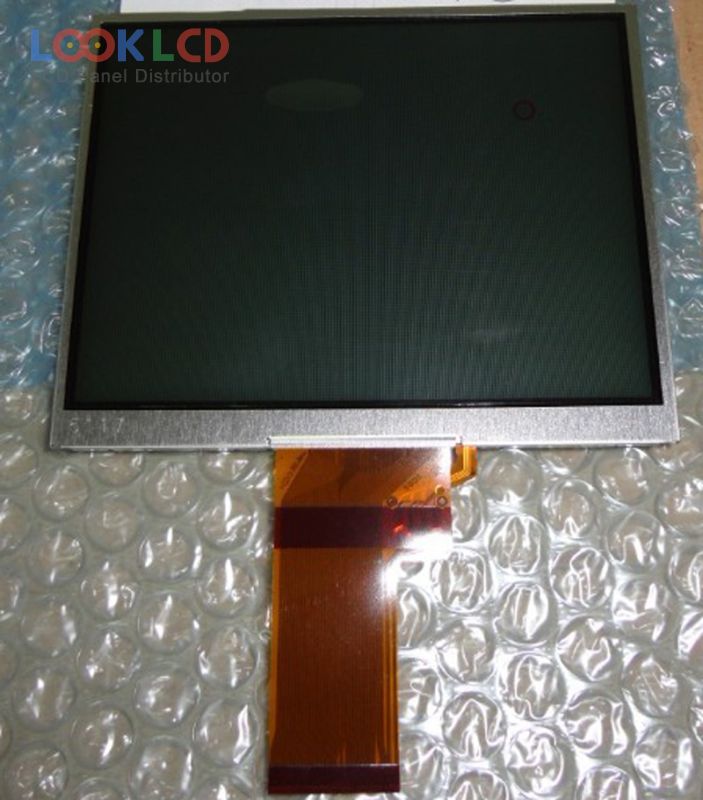

| PartNumber | COM50H5125XLC |
| Marca | ORTUSTECH |
| mărimea | 5.0 |
| Aplicație | IA |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 400:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | ORTUSTECH |
| model de panou | COM50H5125XLC |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.0 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 100.8×75.6 mm |
| contur | 108.3×87.55×3.2 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.)(Transmissive)12:1 (Typ.)(Reflective) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| timp de raspuns | 40/60 (Max.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S2PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6/8-bit), 67 pins |
| tensiune de intrare | 3.0V (Typ.) |
| aplicarea | IA |
