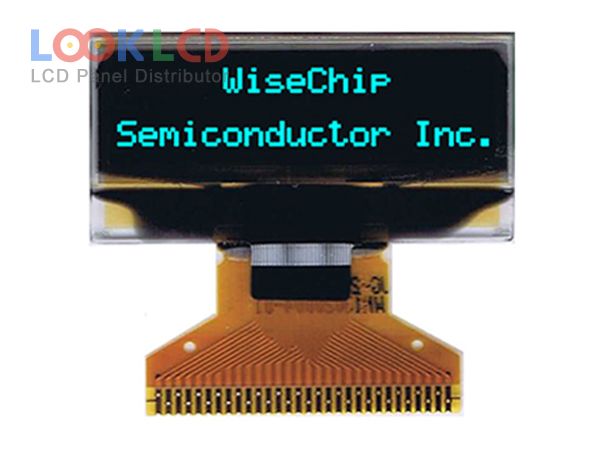

| PartNumber | UG-2832TLBGG01 |
| Marca | WiseChip |
| mărimea | 1.0 |
| Aplicație | IA |
| Rezoluţie | 128×32 |
| Compoziţie | OLED |
| Luminozitate | 100 |
| CR | 10000:1 |
| Culori | Mono(Blue) |
| Iluminare de fundal | self |
| Interfață | CPU/SPI/I²C |
| marca panoului | WiseChip |
| model de panou | UG-2832TLBGG01 |
| tip panou | PM-OLED , OLED |
| dimensiunea panoului | 1.0 inch |
| rezoluţie | 128×32 |
| Zonă activă | 25.58×6.38 mm |
| contur | 29.8×14.5×1.4 mm |
| suprafaţă | |
| luminozitatea | 100 cd/m² (Typ.) |
| Raport de contrast | 10000 : 1 (Typ.) |
| culorile afișajului | Mono(Blue) |
| unghi de vedere | |
| driver ic | Built-in SSD1306 |
| interfață de semnal | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| tensiune de intrare | 2.8/7.25V (Typ.)(VDD/VCC) |
| rohs: | |
| aplicarea | IA |
| DLC0104AZOG | Other | 1.0 | 128×32 |
| OEL9M0073-G-E | Other | 1.0 | 128×64 |
| OEL9M0073-R-E | Other | 1.0 | 128×64 |
| OEL9M0073-W-E | Other | 1.0 | 128×64 |
| RGS10128032WR006 | RiTdisplay | 1.0 | 128×32 |
| UG-2832HLBEG04 | WiseChip | 0.91 | 128×32 |
| UG-2832HSWEG04 | WiseChip | 0.91 | 128×32 |
| UG-2832KLBEG04 | WiseChip | 0.91 | 128×32 |
| UG-2832TLBGG01 | WiseChip | 1.0 | 128×32 |
| UG-2832TSWGG01 | WiseChip | 1.0 | 128×32 |
| BA121S01-100 | BOE | 12.1 | 800×600 |
| G084SN03 V3 | AUO | 8.4 | 800×600 |
| G104V1-T03 | Innolux | 10.4 | 640×480 |
| LM32015T | SHARP | 5.7 | 320×240 |
| LM64P101 | SHARP | 7.2 | 640×480 |
| LQ084S3DG01 | SHARP | 8.4 | 800×600 |
| LQ150X1LW12 | SHARP | 15.0 | 1024×768 |
| LTD121C32S | TOSHIBA | 12.1 | 800×600 |
| RGS24128064YW005 | RiTdisplay | 2.4 | 128×64 |
| TM057KDH05 | Tianma | 5.7 | 320×240 |
