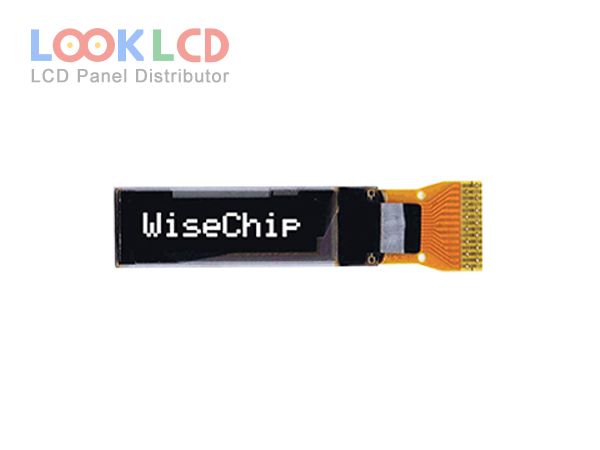

| PartNumber | UG-9616TSWCG02 |
| Marca | WiseChip |
| mărimea | 0.69 |
| Aplicație | |
| Rezoluţie | 96×16 |
| Compoziţie | OLED |
| Luminozitate | 150 |
| CR | 10000:1 |
| Culori | Mono(White) |
| Iluminare de fundal | self |
| Interfață | I²C |
| marca panoului | WiseChip |
| model de panou | UG-9616TSWCG02 |
| tip panou | PM-OLED , OLED |
| dimensiunea panoului | 0.69 inch |
| rezoluţie | 96×16 |
| Zonă activă | 17.26×3.18 mm |
| contur | 27.9×8×1.55 mm |
| suprafaţă | |
| luminozitatea | 150 cd/m² (Typ.) |
| Raport de contrast | 10000 : 1 (Typ.) |
| culorile afișajului | Mono(White) (1-bit) |
| unghi de vedere | |
| driver ic | COG Built-in SSD1306 |
| interfață de semnal | I²C, 14 pins |
| tensiune de intrare | 2.8/7.25V (Typ.)(VDD/VCC) |
| UG-9616TLBBG01 | WiseChip | 0.84 | 96×16 |
| UG-9616TSWBG01 | WiseChip | 0.84 | 96×16 |
| UG-9616TSWCG02 | WiseChip | 0.69 | 96×16 |
| A056VN01 V0 | AUO | 5.6 | 640×480 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LQ150X1LGN1 | SHARP | 15.0 | 1024×768 |
| LQ150X1LGN2C | SHARP | 15.0 | 1024×768 |
| LS025Q1UC01 | SHARP | 2.5 | |
| LSUGC202XA | ALPS | 8.9 | 640×240 |
| OEL9M5001-W-E | Other | 2.7 | 128×64 |
| RGS11128036WR014 | RiTdisplay | 1.1 | 128×36 |
| TD043MTEA1 | TPO | 4.3 | 800×480 |
| TFT1N6248-E | Other | 3.2 | 240×320 |
