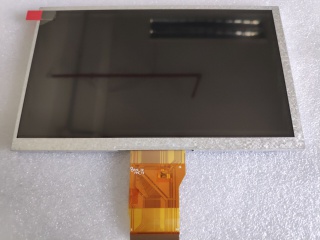

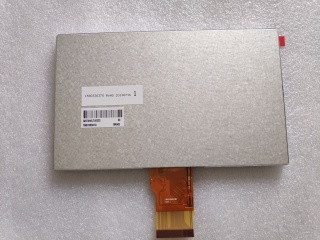

| PartNumber | TM070RDH10-43 |
| Marca | TIANMA |
| mărimea | 7.0 |
| Aplicație | Industrial Digital P |
| Rezoluţie | 800×480 |
| Compoziţie | LCM, a-Si TFT-LCD |
| Luminozitate | |
| CR | 500:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | 3S8P |
| Interfață | |
| producător | TIANMA |
| numele modelului | TM070RDH10-43 |
| marimea ecranului | 7.0 inch |
| tipul de ecran | LCM, a-Si TFT-LCD |
| numărul de pixeli | 800(RGB)×480 (WVGA) 134PPI |
| aranjament | RGB Vertical Stripe |
| zona activa (mm) | 154.08 × 85.92 (H×V) |
| contur (mm) | 164.9 × 100 × 6 (H×V×D) |
| zona rama (mm) | 157.08 × 89.39 (H×V) |
| tratament | Antiglare |
| luminanţă | 400 cd/m² (Typ.) |
| Raport de contrast | 500 : 1 (Typ.) (TM) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10) |
| raspuns | 25 (Typ.)(Tr+Td) ms |
| vedere buna la | 12 o'clock |
| modul de lucru | TN, Normally White, Transmissive |
| adâncimea culorii | 262K/16.7M 50% NTSC |
| lumina de fundal | 3S8P WLED , 20K hours , No Driver |
| masa | 160g (Typ.) |
| folosit pentru | Industrial Digital Photo Frame Portable DVD Player |
| rată de reîmprospătare | 60Hz |
| touch screen | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| A070SN02 V0 | AUO | 7.0 | 800×600 |
| HE070IA-04F | Innolux | 7.0 | 800×1280 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| LD070WS2-SL07 | LG Display | 7.0 | 1024×600 |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
| TM070RDH11 | Tianma | 7.0 | 800×480 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
