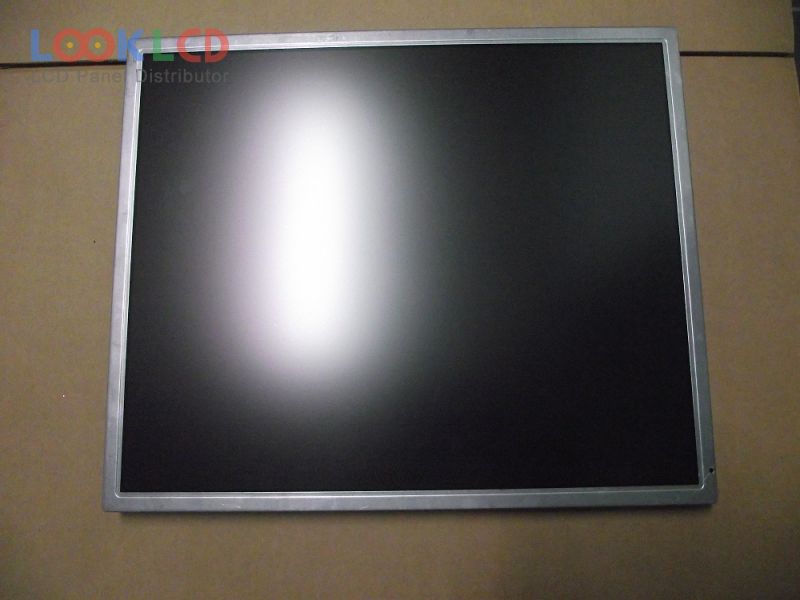

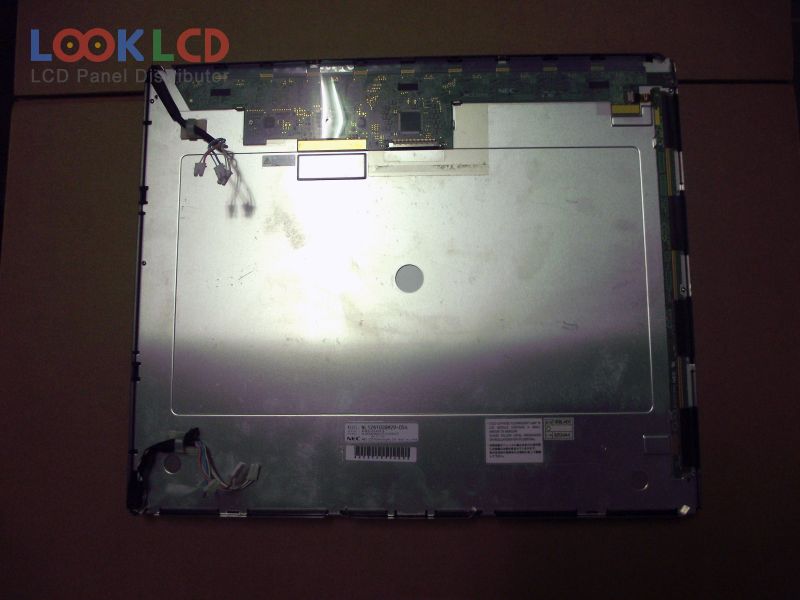

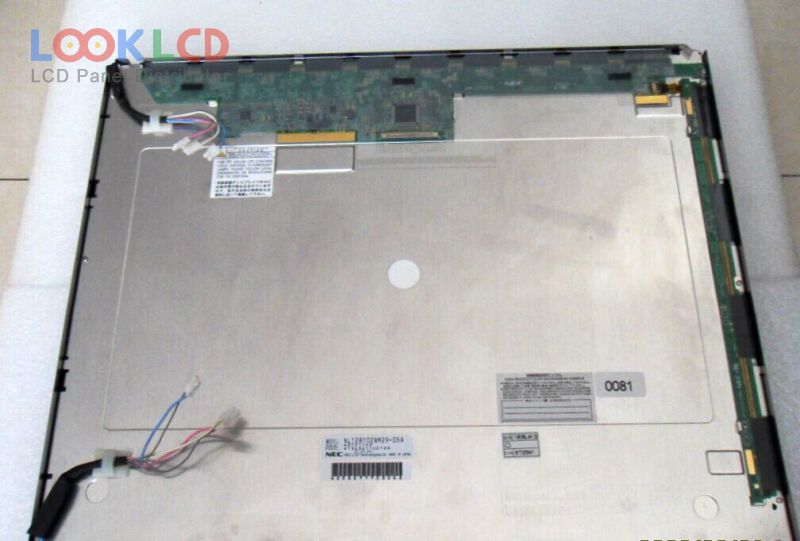

| PartNumber | NL128102BM29-05A |
| Marca | NLT |
| mărimea | 19.0 |
| Aplicație | MD |
| Rezoluţie | 1280×1024 |
| Compoziţie | LCM |
| Luminozitate | 1000 |
| CR | 900:1 |
| Culori | Grayscale |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | NEC |
| model de panou | NL128102BM29-05A |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 19.0 inch |
| rezoluţie | 1280(LCR)×1024 , SXGA |
| modul de afișare | SA-SFT, Normally Black, Transmissive |
| Zonă activă | 376.32×301.056 mm |
| contur | 404.2×330×25.55 mm |
| suprafaţă | Antiglare, Hard coating (2H) |
| luminozitatea | 1000 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | Grayscale (8-bit) |
| timp de raspuns | 18/17 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| rohs: | |
| aplicarea | MD |
