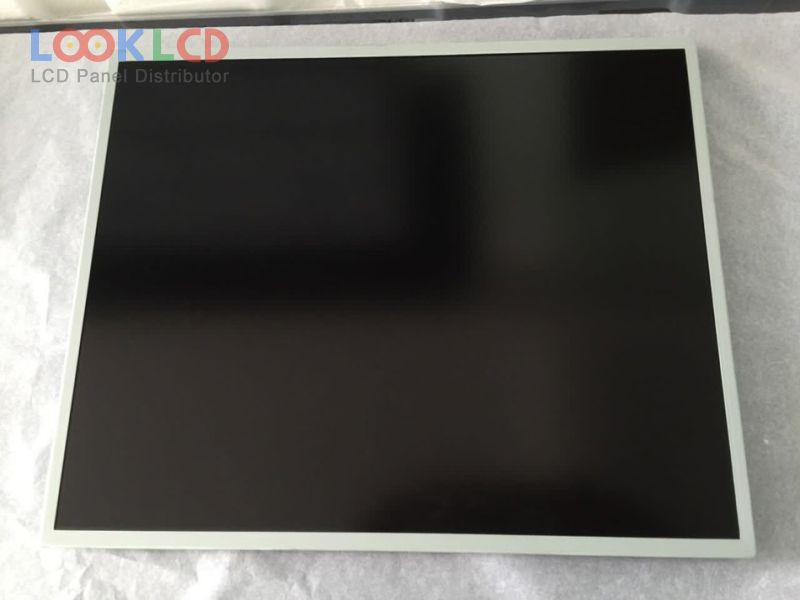

| PartNumber | NL128102AC29-17 |
| Marca | NLT |
| mărimea | 19.0 |
| Aplicație | IA |
| Rezoluţie | 1280×1024 |
| Compoziţie | LCM |
| Luminozitate | 800 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | NLT |
| model de panou | NL128102AC29-17 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 19.0 inch |
| rezoluţie | 1280(RGB)×1024 , SXGA |
| modul de afișare | UA-SFT, Normally Black, Transmissive |
| Zonă activă | 376.32×301.056 mm |
| contur | 396×324×18.5 mm |
| suprafaţă | Antiglare, Hard coating (2H) |
| luminozitatea | 800 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 14/11 (Typ.)(Tr+Td) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | IA |
| M190MWW4 R2 | IVO | 19.0 | 1440×900 |
| MT190AW02 V.A | Innolux | 19.0 | 1440×900 |
| NL128102AC23-01 | NLT | 15.4 | 1280×1024 |
| NL128102AC28-07 | NLT | 18.1 | 1280×1024 |
| NL128102AC29-17 | NLT | 19.0 | 1280×1024 |
| NL128102BC23-03 | NLT | 15.4 | 1280×1024 |
| NL128102BC29-01 | NLT | 19.0 | 1280×1024 |
| NL128102BC29-01B | NLT | 19.0 | 1280×1024 |
| NL128102BC29-01C | NLT | 19.0 | 1280×1024 |
| NL128102BM29-05A | NLT | 19.0 | 1280×1024 |
| B084SN02 V0 | AUO | 8.4 | 800×600 |
| G156XW01 V1 | AUO | 15.6 | 1366×768 |
| G220SW01 V0 | AUO | 22.0 | 1680×1050 |
| KCS057QV1AJ-G23 | Kyocera | 5.7 | 320×240 |
| LB121S03-TL03 | LG Display | 12.1 | 800×600 |
| LQ121S1LG81 | SHARP | 12.1 | 800×600 |
| LTA104D183F | TOSHIBA | 10.4 | 800×600 |
| MAA121DSK26 | Mitsubishi | 12.1 | 800×600 |
| NL8060BC31-28D | NLT | 12.1 | 800×600 |
| PD080SL3 | E Ink | 8.0 | 800×600 |
